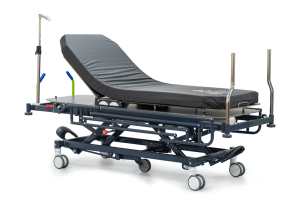

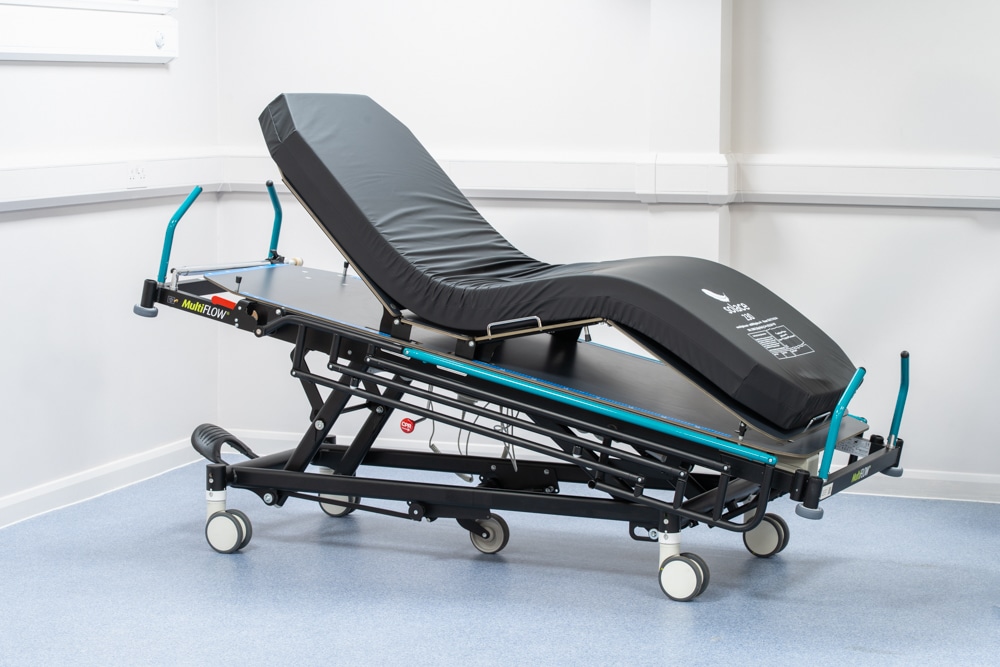

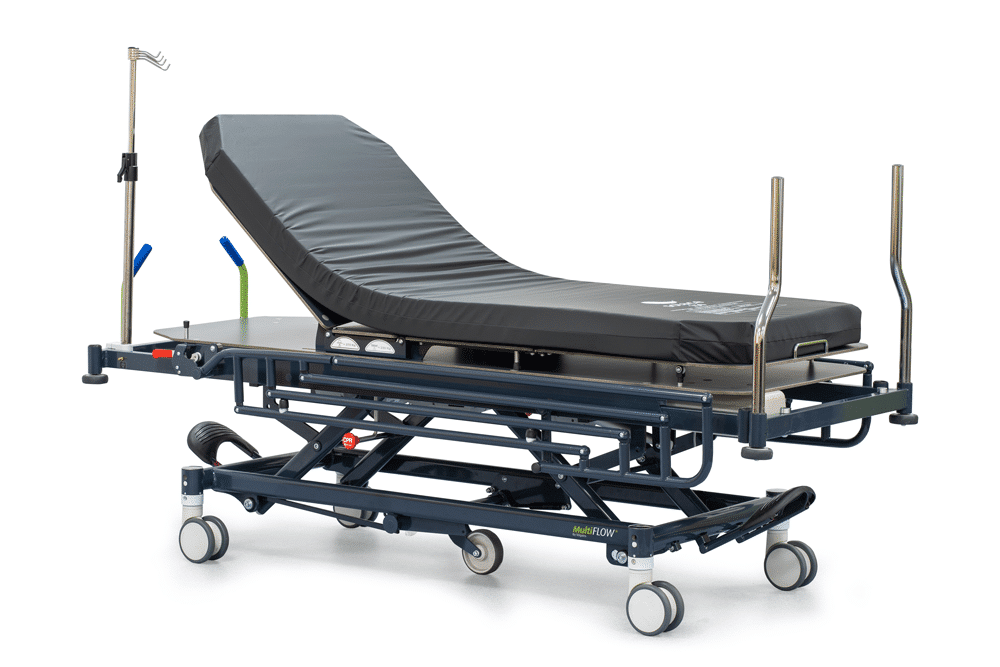

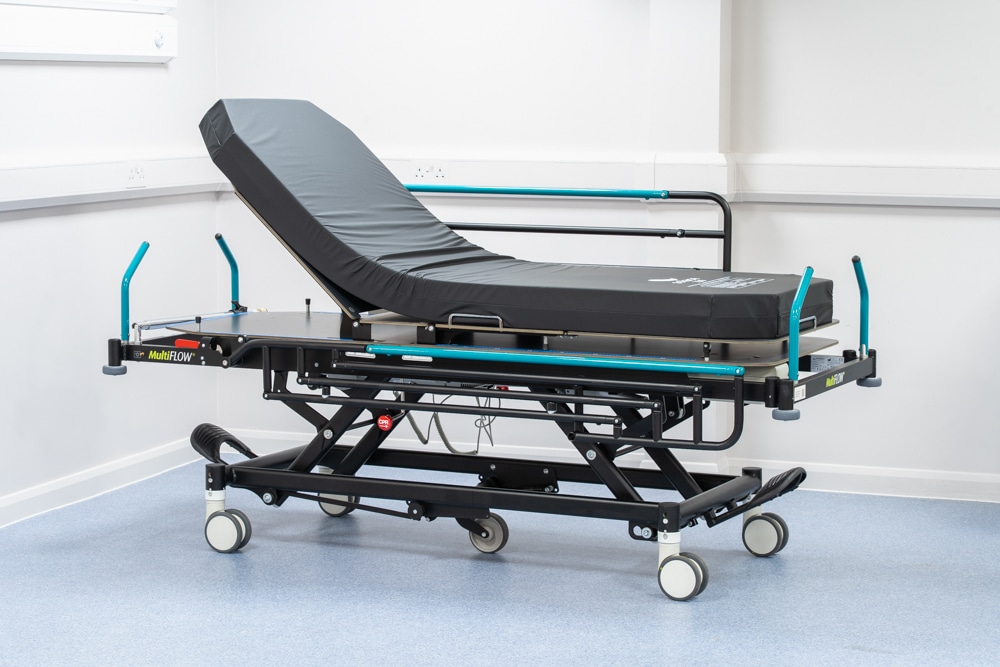

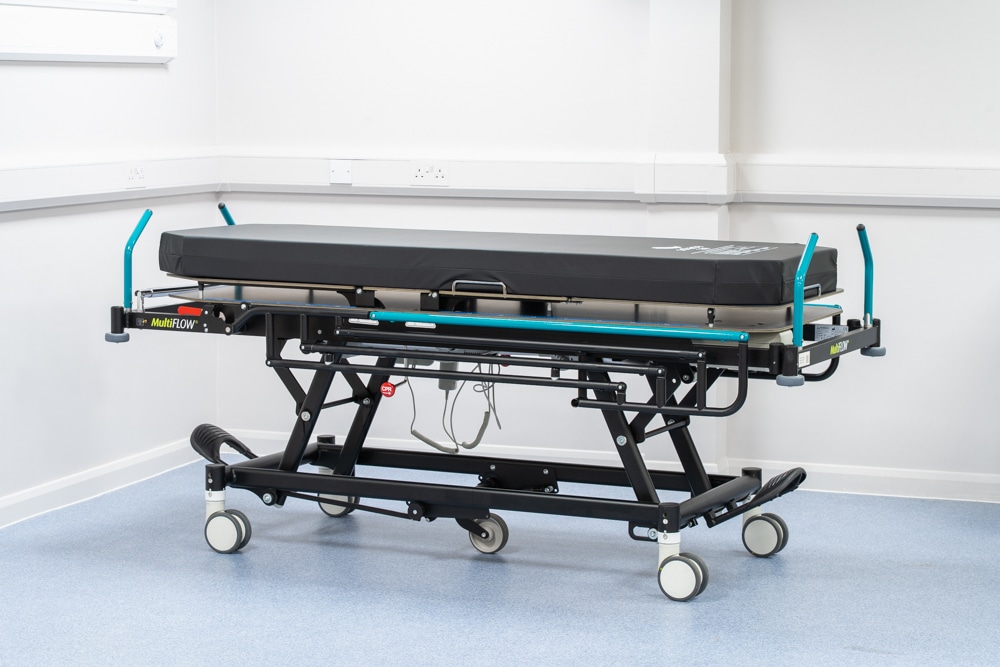

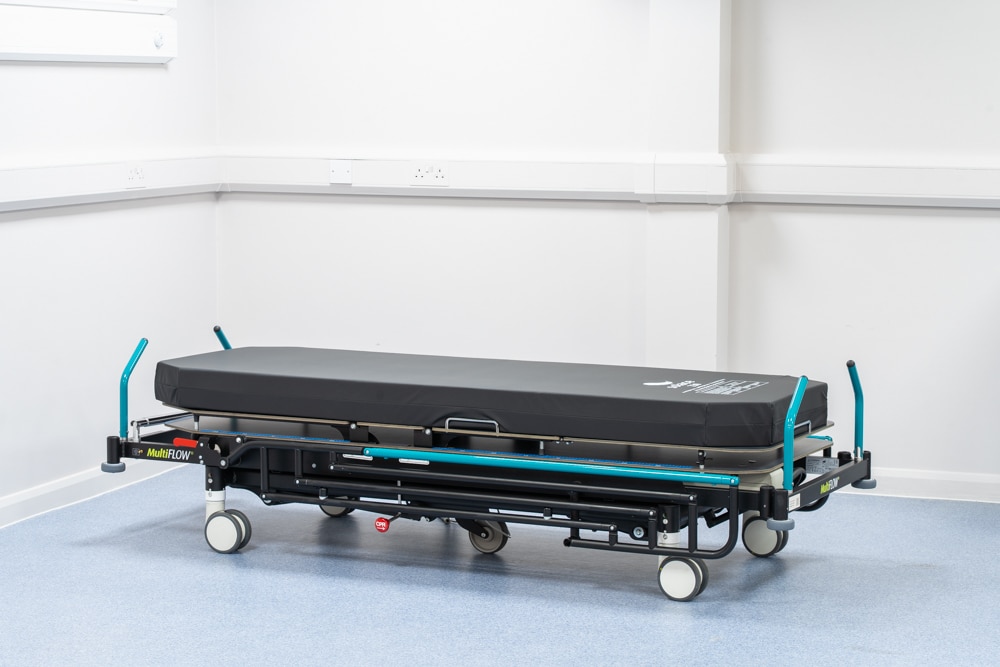

MultiFlow Low Height Hospital Patient Stretcher

Product Information

• Description

  The MultiFlow is a low-height hospital Patient Stretcher for ED departments and theatres. The Industry-leading 340mm minimum platform height enables all patients to get their feet flat on the floor when getting on and off the trolley. This reduces unnecessary staff handling and promotes dignity and independence for patients.

  The MultiFlow is the first stretcher on the market with electronically powered dual autoregression. This reduces shear and pressure on the sacral area, and can also reduce the need for patient repositioning – minimising the handling required.

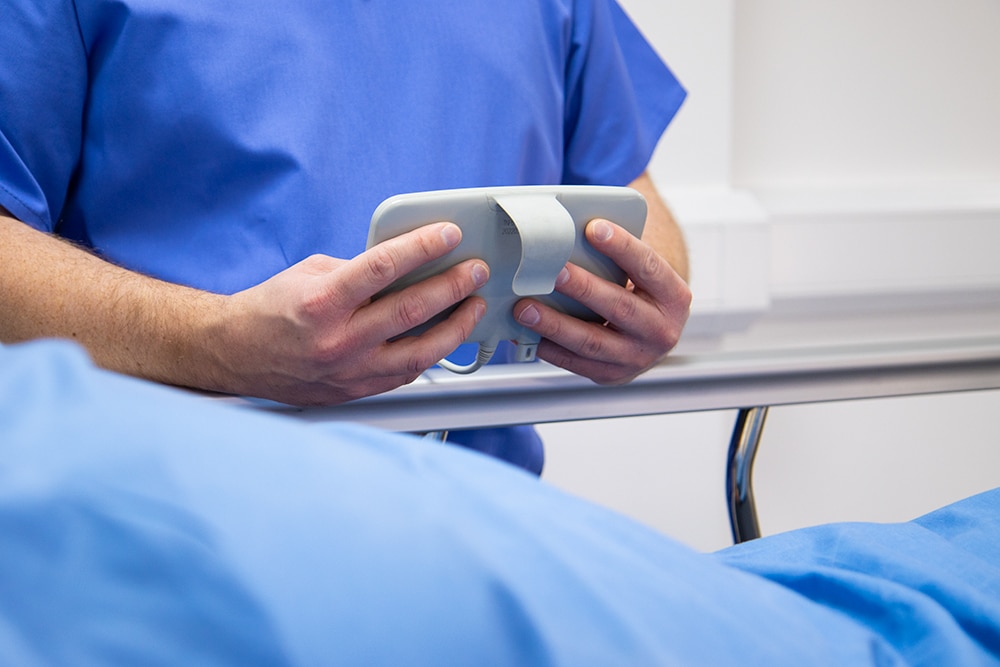

  The electric functions on the MultiFlow allow for smooth and modulated adjustment of the key settings, from stretcher height for lateral transfers, to increased comfort for those on the trolley for extended periods.

• Key Features Diagram

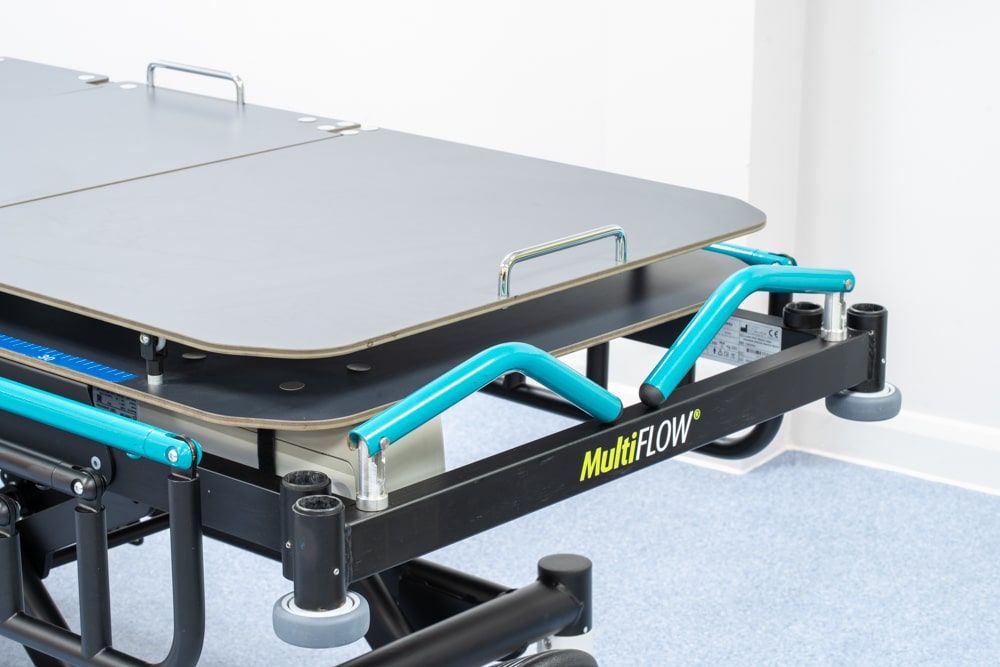

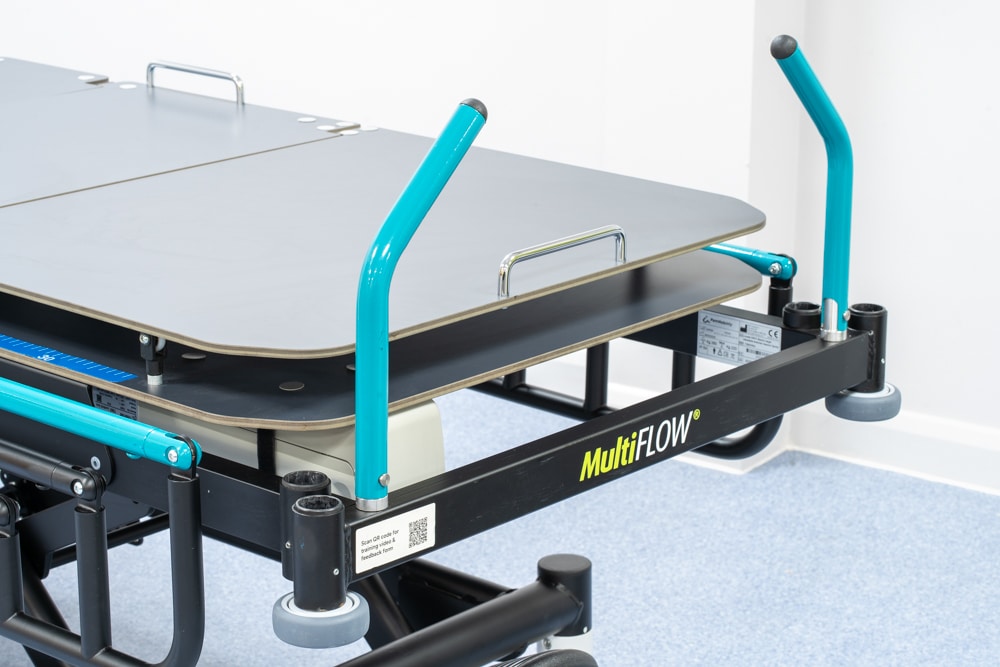

  Fold down push handles




  Option: slimline slideaway basket for personal effects or patient notes




  Option: Oxygen cylinder holder (Sizes available to suit CD, F, HX and ZX bottles)




  Option: Footboard with integrated monitor support

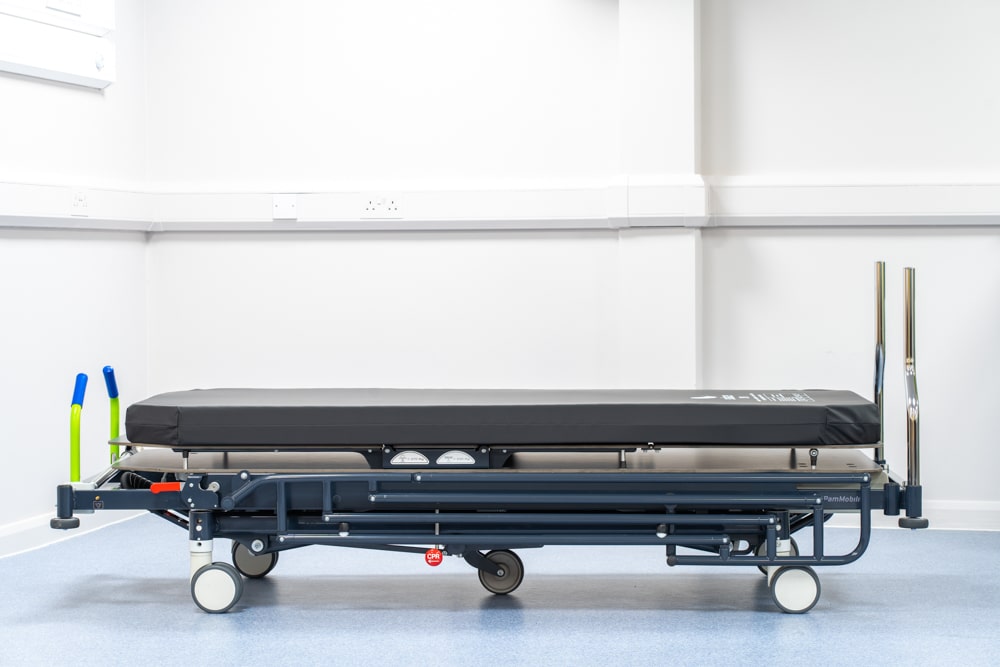

  Industry-leading 340mm minimum platform height

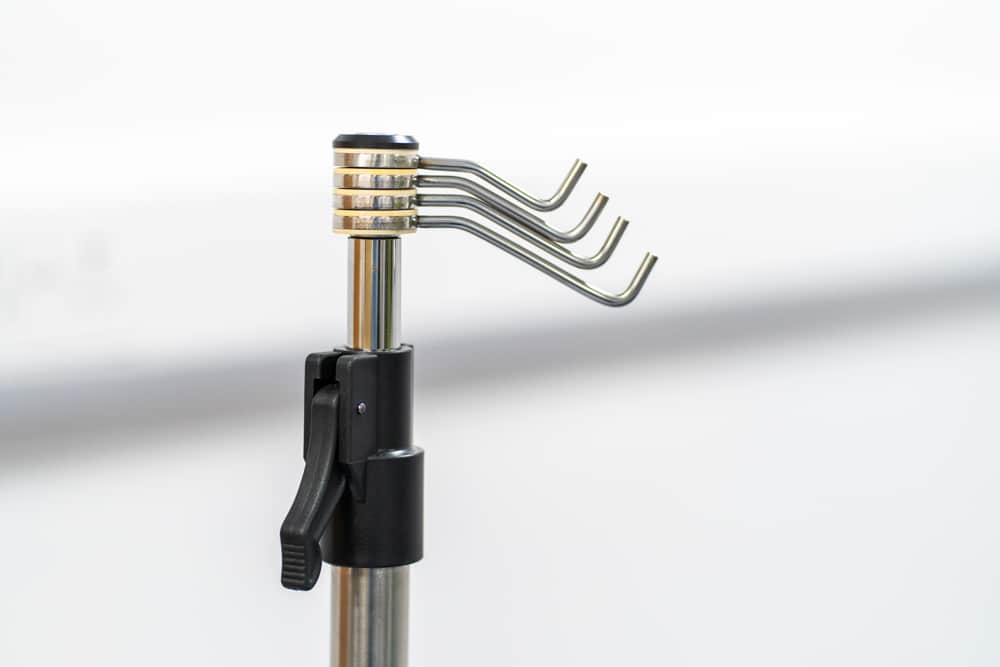

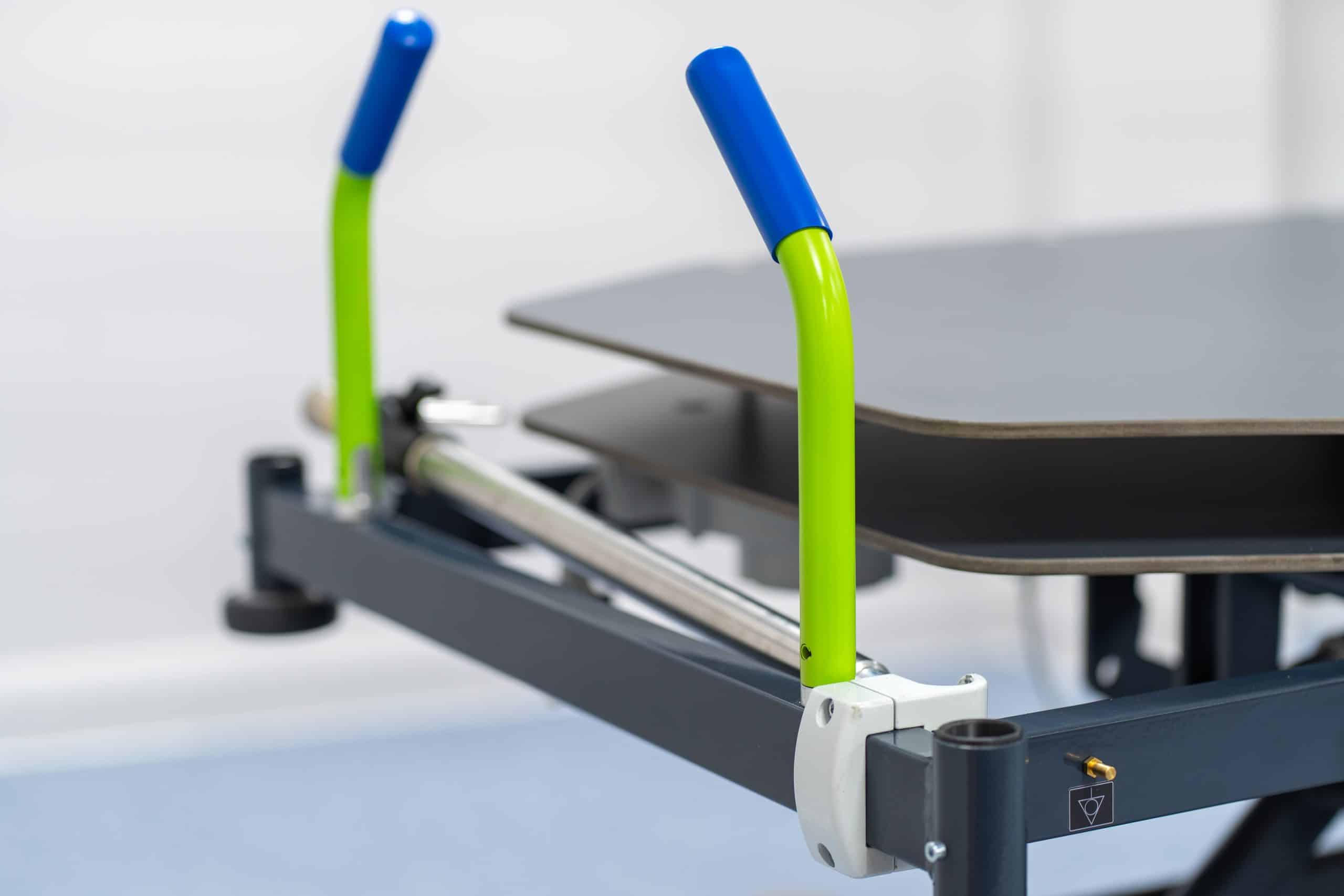

  Height adjustable and fold down IV poles




  Electronically powered dual auto regression

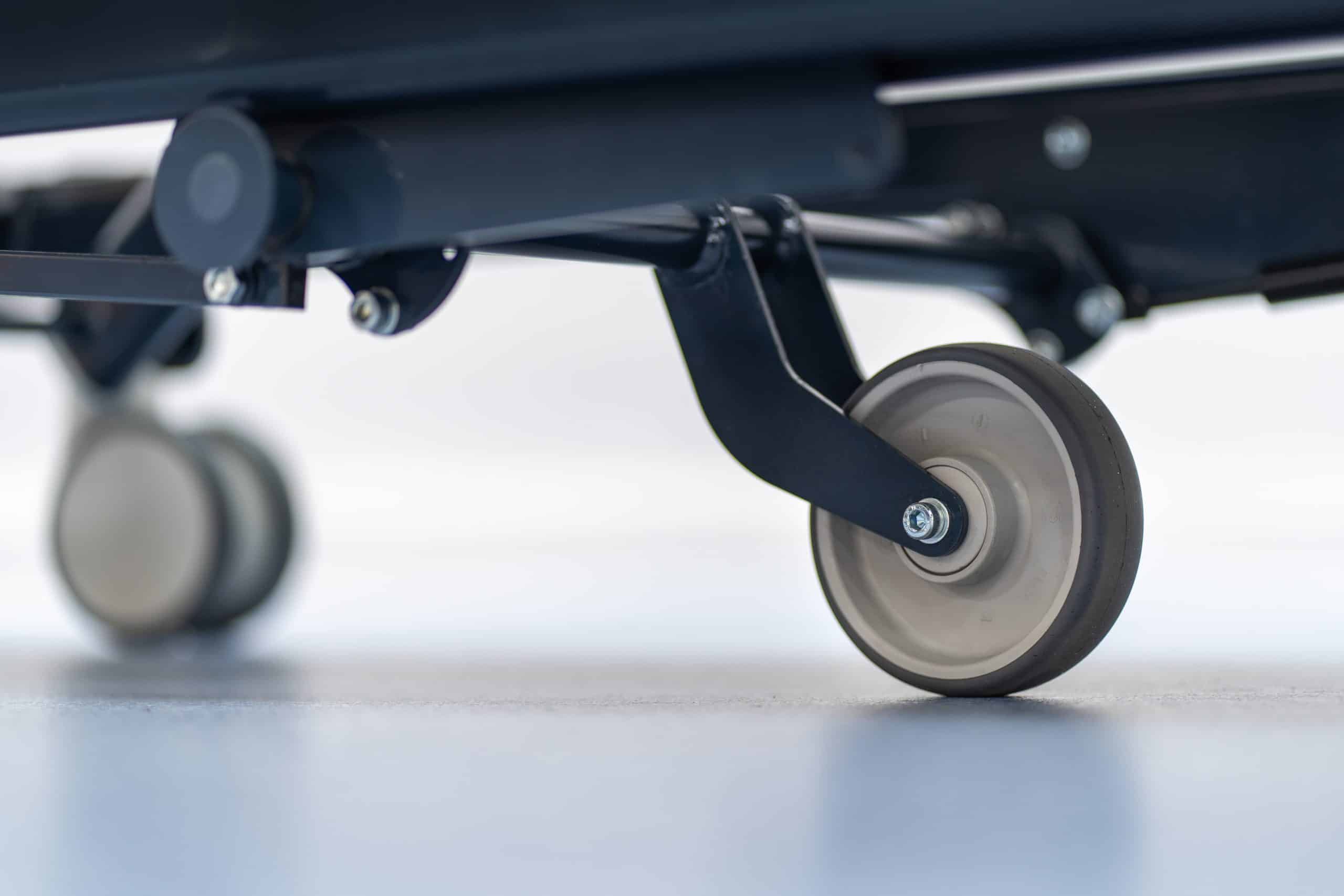

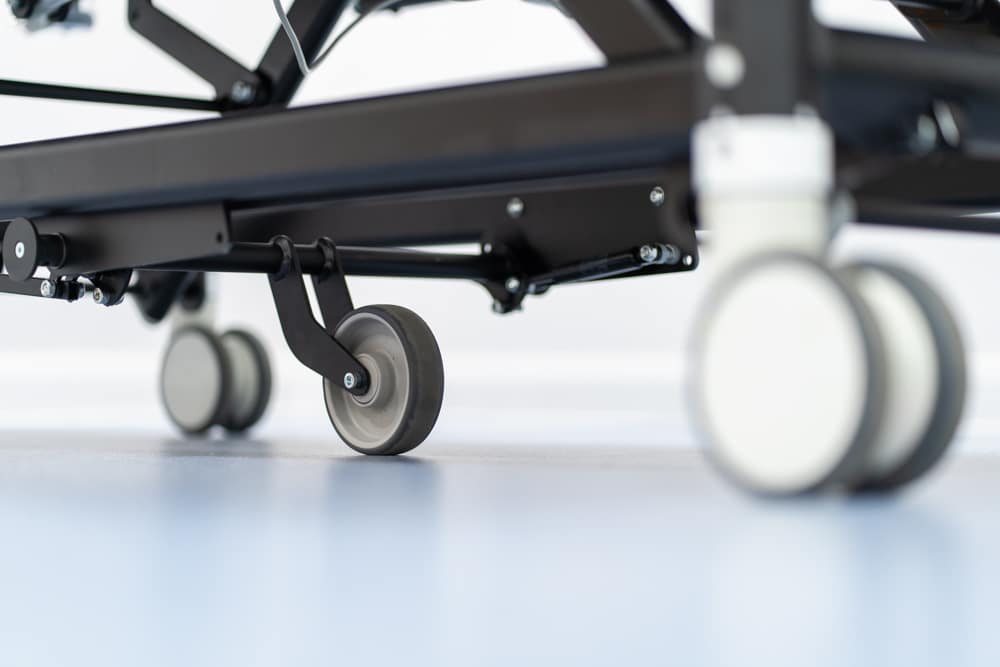

  5th wheel for manoeuvrability

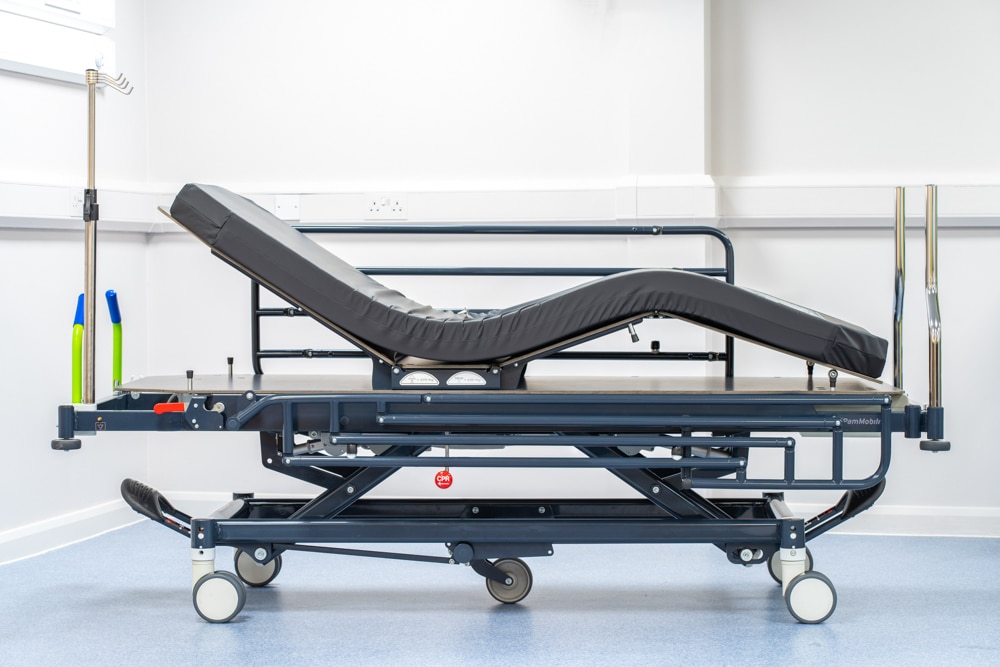

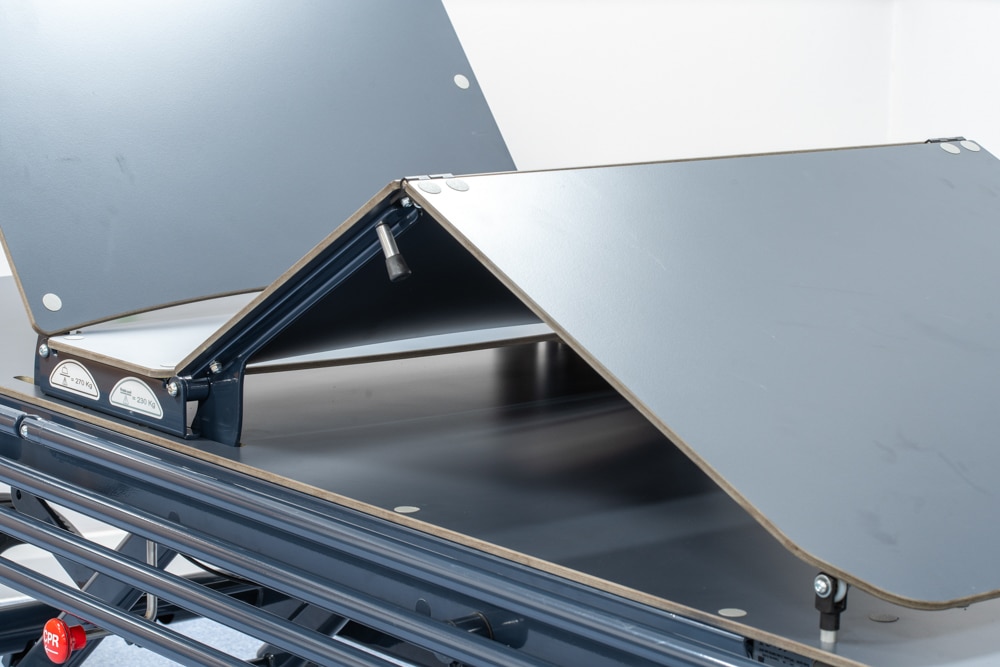

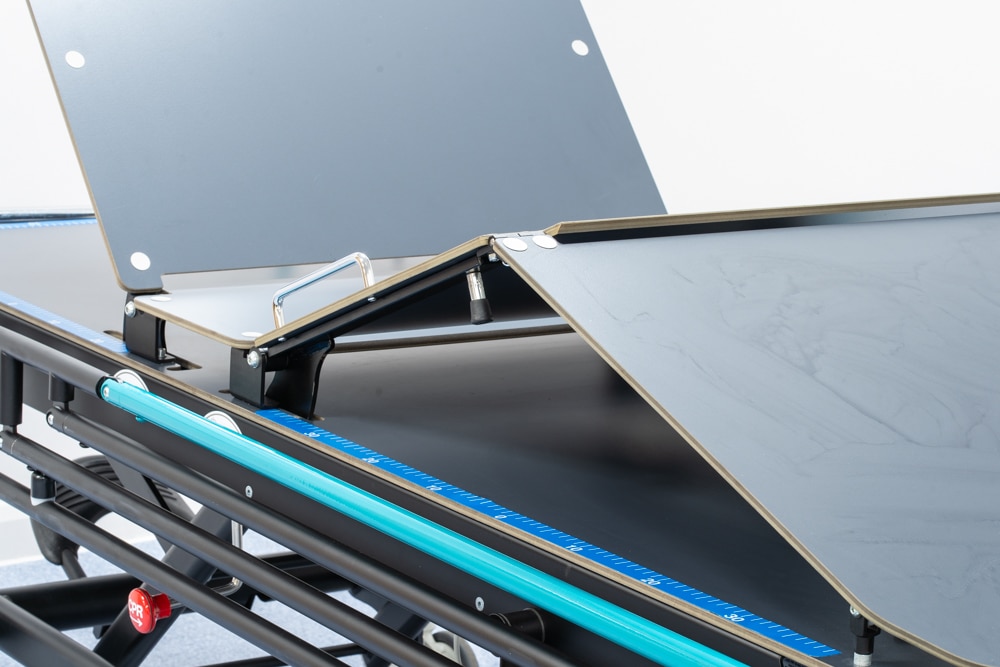

  4 section profiling mattress platform




  Central braking and 5th wheel engagement

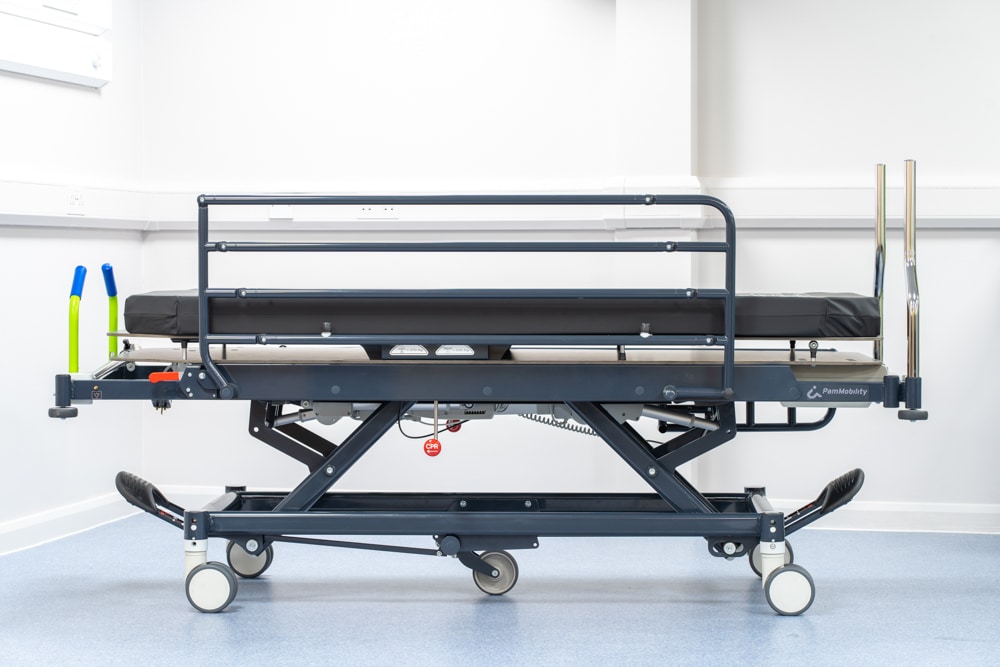

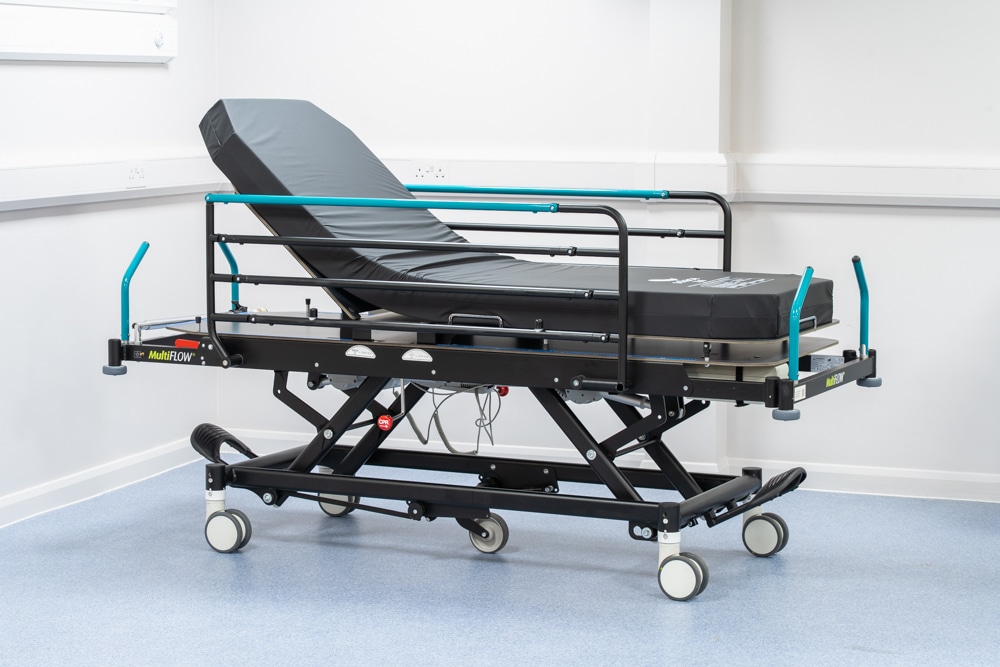

  Fold flat level siderails for easy transfers



• Options

  Slimline slideaway basket for personal effects	Oxygen cylinder holder (Sizes available to suit CD, F, HX and ZX bottles)
  Footboard with integrated Monitor Support	2 Solace Mattress options: high risk 150kg SWL, high risk 260kg SWL



• Technical Specifications

  Safe Working Load	320kg
  Max patient weight	280kg
  Min platform height	340mm
  Max platform height	740mm
  Patient platform dimensions	700 x 1950mm
  Stretcher weight	130kg
  Double Auto regression	Yes
  Level siderails	Yes
  Auto chair position	Yes

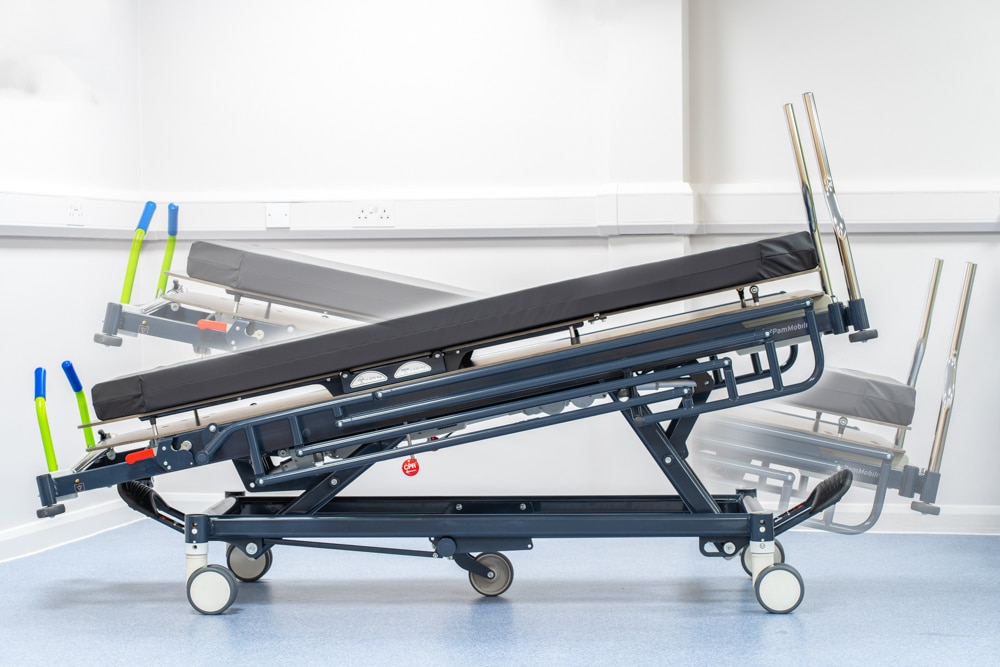

  Trendelenburg	Yes
  Warranty	2 years
  Fifth wheel	Yes
  Charging system	Onboard batteries which can be charged on the trolley or hot-swopped
  Expected service life	10 years
  Cylinder holders	Yes, options available
  X Ray cassette holder	Option
  Lock out function	Yes
  Folding IV pole	Yes (doubles up as a pushing handle to reduce risk of damage)
  Backrest/Knee brake	Yes, both
  Trendelenburg range	-12° – 12°
  Backrest angle	70°
  Kneebrake angle	30°
  Calf rest	15 – 22°
  Wheels	Ø 150 mm double rollers



• Rental

  The MultiFlow is now available on block rental to ease peak periods, such as winter pressures.

  • 10 day block rental
  • Staff training included within delivery costs

  Get in touch for more information and costings
