Ottobock Juvo B4 Powerchair

Product Information

• Description

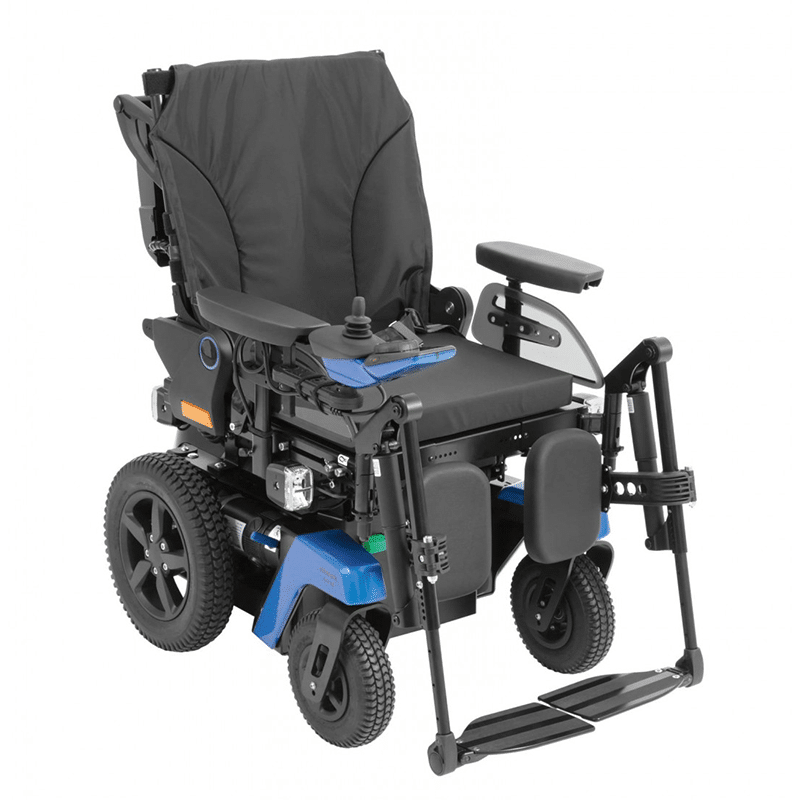

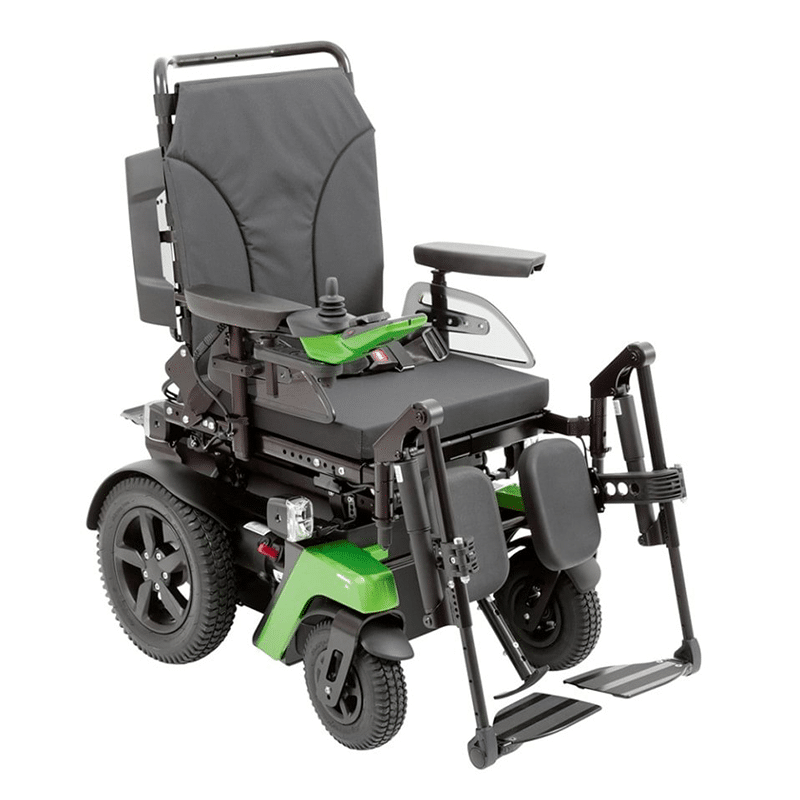

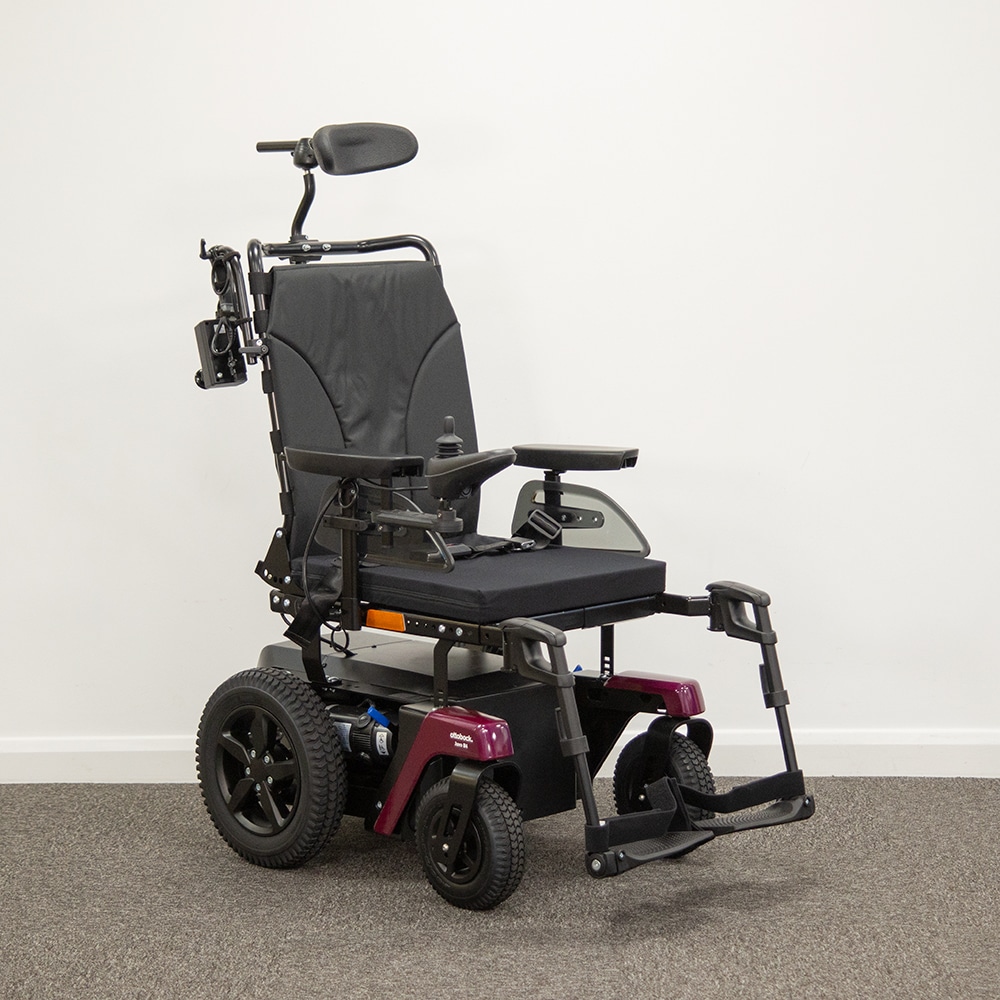

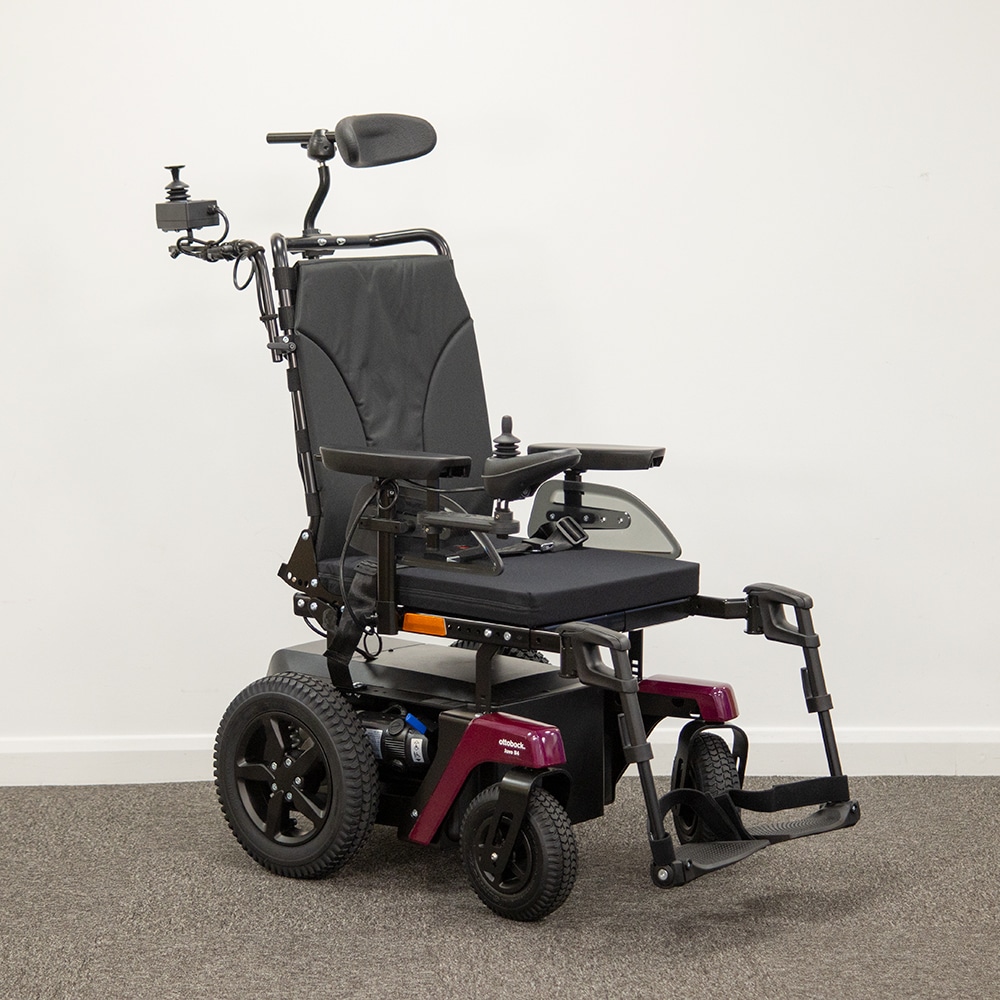

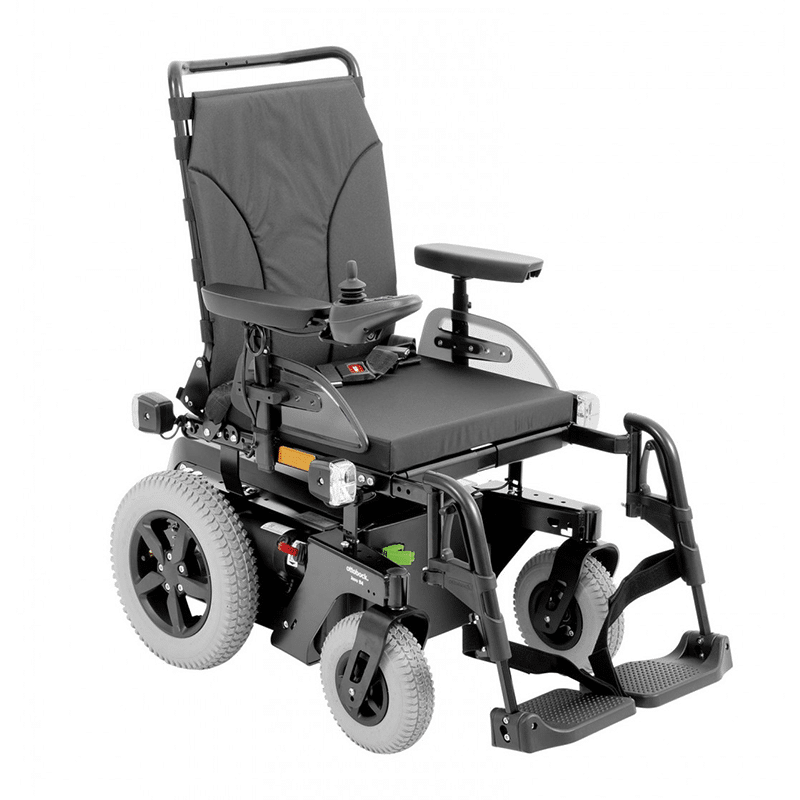

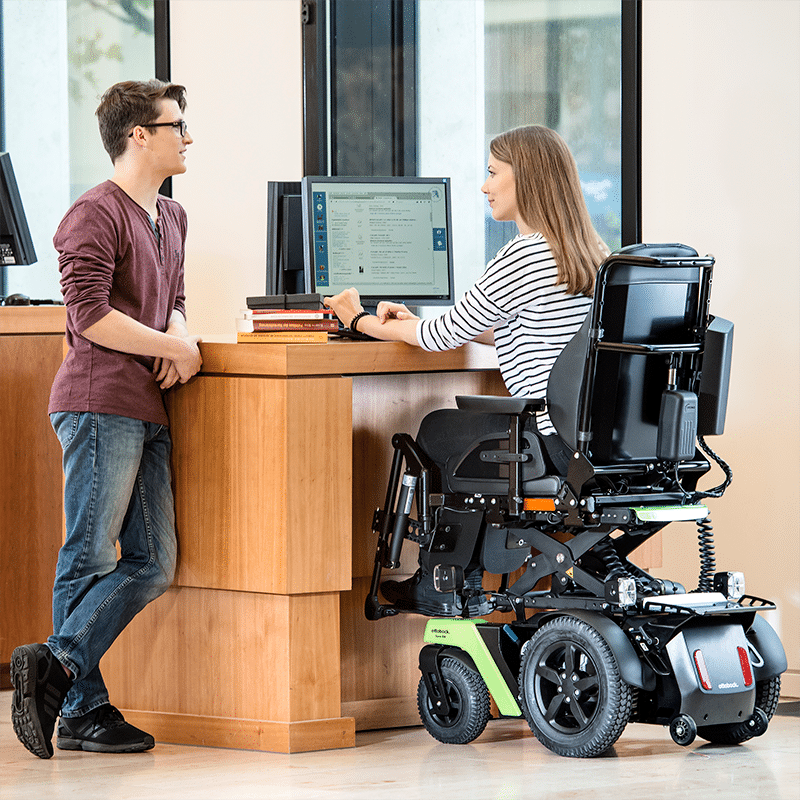

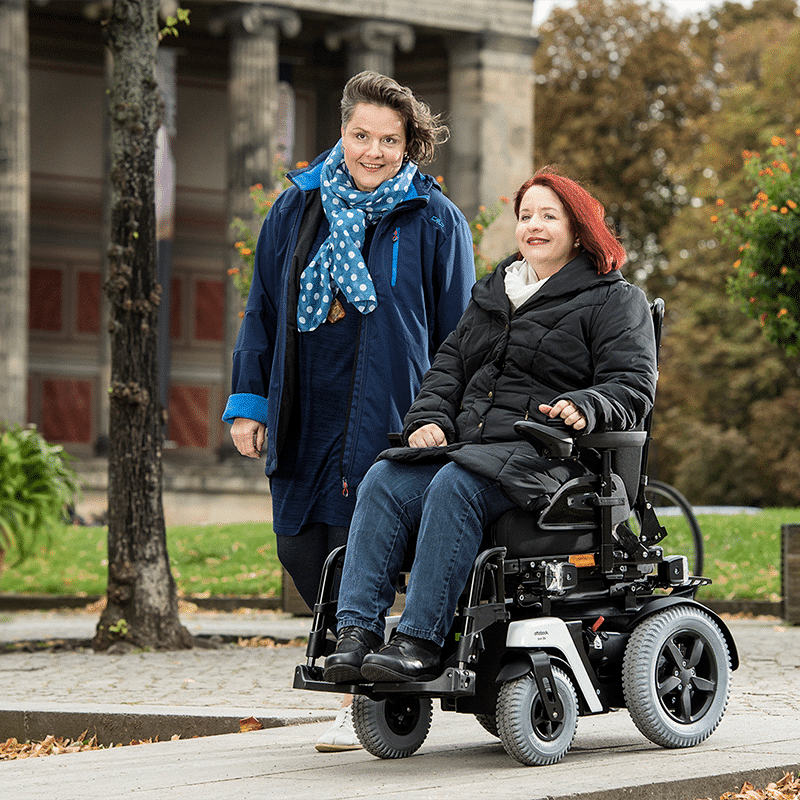

  The Ottobock Juvo B4 Electric Wheelchair is a compact but super robust and durable powerchair for reliable everyday use. A rear-wheel drive powerchair, the B4 offers enhanced safety and comfortable damping characteristics for outdoor use.

  It is also compact and manoeuvrable indoors. Permanent drive wheel suspension compensates for uneven surfaces and the electric wheelchair’s small outside dimension makes it easier to drive through narrow doorways and navigate in confined spaces.

  Like all models in the Juvo product line, the B4 features a modular design and offers a high level of flexibility.

  • The B4’s rear-wheel drive base is robust, durable and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by a total width of just 59 cm. Smaller wheel sizes are available for indoor use.
  • Permanent drive wheel suspension compensates for uneven surfaces and ensures enhanced safety and comfortable damping. This can be further optimised with an additional front suspension.
  • Integrated anti-tipper rollers ensure enhanced safety and protect against damage when driving  backward.
  • External power supply sockets are a new feature on the Ottobock Juvo B4 Electric Wheelchair: 12 V, 24 V and a USB charging receptacle with two inputs. This means you can charge your mobile phone when you’re out and about.



  Choose your seating

  The Standard seating package comes in four sizes with an adaptable seat width and seat depth. It has a folding backrest tension adjustable back upholstery, flip-up armrests and choice of three leg support styles.

  The Vario Adjust Seat (VAS) is highly adjustable to precisely match your body measurements even if your needs change. The Ergo-Joint back angle adjustment largely eliminates shear forces. The seat frame holds a variety of mounting options including lateral supports.

  The Baxx Line ergonomic rigid backrests can be combined with VAS. Offering a high level of stability and sitting comfort, you can choose from two different heights and three contour levels for a perfect fit for you.

  Compatible with both the Standard and VAS seating systems, the Contour Package offers ergonomically design seating cushions developed with physiotherapists and OTs. Available in a range of sizes and contours, they offer excellent lateral stability and optimal positioning of the pelvis.



  Why we recommend

  The Juvo B4 is an entry-level rear wheel drive electric wheelchair that’s built for longer distances and offers a far greater durability and customisation options than ‘off the shelf’ models. It makes an ideal companion for the most demanding indoor and outdoor use that you can depend on day in, day out.

• Dimensions & Technical Info

  Width	585 – 595 mm
  Seat height	410 – 570 mm (depending on seating)
  Seat depth	340 – 580 mm
  Seat width	340 – 560 mm
  Maximum speed	6 / 7.2 / 10 km/h
  Batteries	AGM 53 Ah (C5) / Gel 63 Ah (C5)
  Maximum range	35 km with AGM battery 53 Ah (C5) / 45 km with gel battery 63 Ah (C5)
  Turning radius	800 mm
  Maximum load	160 kg (25 st)
  Warranty	2 years
  Crash Tested	Yes
