Ottobock Juvo B5/B6 Powerchair

Product Information

• Description

  The OttoBock Juvo B5/B6 Electric Wheelchair have a modular design that offers almost boundless possibilities for assembling custom configurations for complex requirements.

  An electric wheelchair for both indoor and outdoor use, the OttoBock Juvo offers front-wheel, mid-wheel and rear-wheel drive, giving you the ability to choose between the specific driving characteristics and motor torques of three drive types across the two frame widths.

  In cooperation with therapists and users, Ottobock pays special attention to ergonomics, offering improved support for and enhanced functions for all-day use. The B5/B6 models offer solutions aimed at regaining mobility quickly with the unique “Quick Mobile” concept. Excellent serviceability with an appealing design and colour concept complete the image.

  Choose your drive type

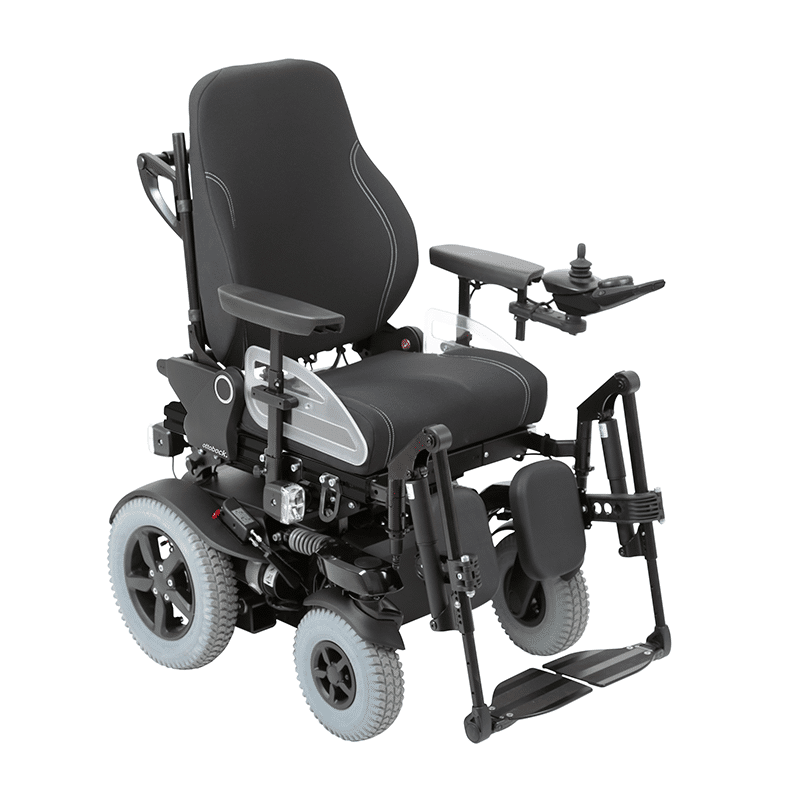

  Rear wheel drive: designed for outdoor use, it offers excellent directional stability and handles well at high speeds.

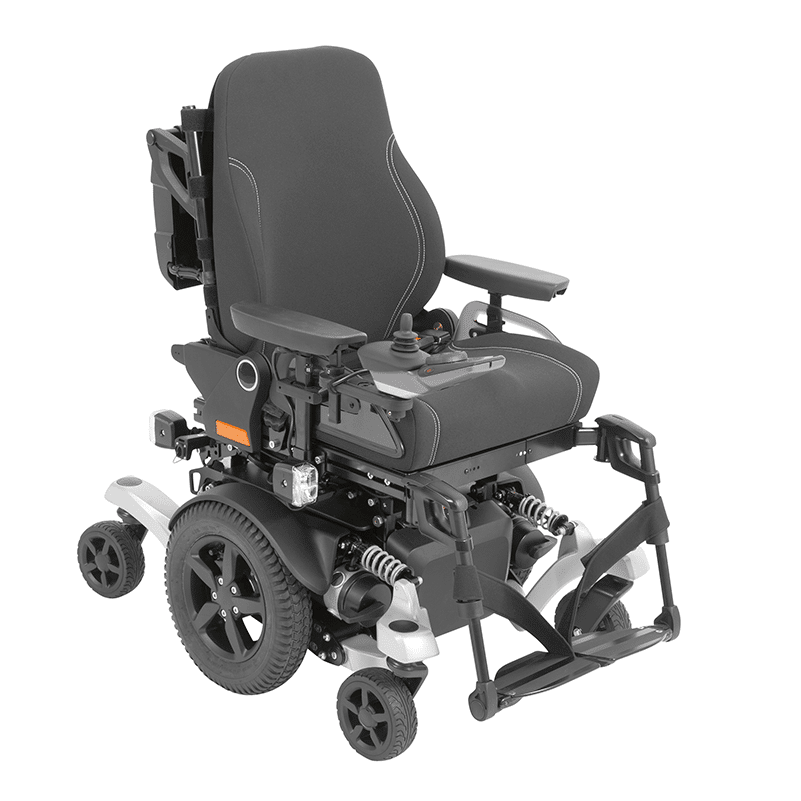

  Mid-wheel drive: the most intuitive to drive with a very small turning radius for the best manoeuvrability. A unique torsion drive system gives you a smoother ride than many other centre wheel electric wheelchairs, with reduced rocking when going up kerbs and when stopping and starting.

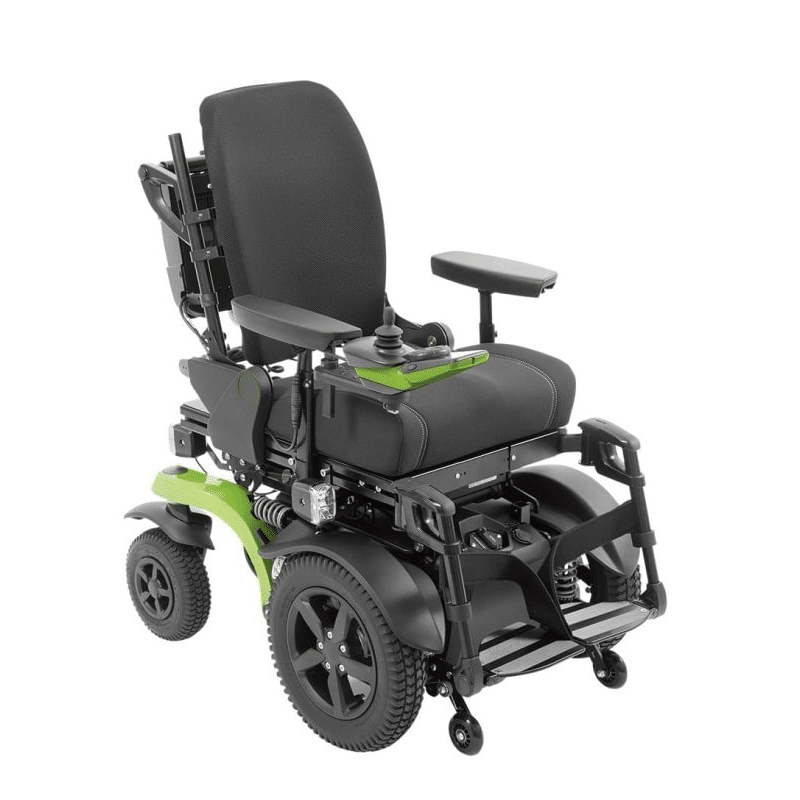

  Front wheel drive: a compact base with good climbing abilities. With a small turning radius and the ability to get closer to furniture, it can be a good indoor option.

  Choose your seating

  The Standard seating package comes in four sizes with an adaptable seat width and seat depth. It has a folding backrest tension adjustable back upholstery, flip-up armrests and choice of three leg support styles.

  The Vario Adjust Seat (VAS) is highly adjustable to precisely match your body measurements even if your needs change. The Ergo-Joint back angle adjustment largely eliminates shear forces. The seat frame holds a variety of mounting options including lateral supports.

  The Baxx Line ergonomic rigid backrests can be combined with VAS. Offering a high level of stability and sitting comfort, you can choose from two different heights and three contour levels for a perfect fit for you.

  Compatible with both the Standard and VAS seating systems, the Contour Package offers ergonomically design seating cushions developed with physiotherapists and OTs. Available in a range of sizes and contours, they offer excellent lateral stability and optimal positioning of the pelvis.

  You can even choose to have a Recaro seat on your Juvo electric wheelchair. Renowned in the automotive and motorsport industry, Recaro seats offer incredible driving comfort and sporty design.



  User-friendly design

  Vibration compensation recognises vibrations which occur e.g. when driving over cobblestones and automatically adjusts to the situation. You no longer have to reduce the speed of the powered wheelchair on a bumpy road.

  Automatic speed reduction on curves means that the control device automatically lowers your speed as soon as it detects a steering motion. Program the parameters that are right for you.

  The automatic circuit breaker turns the power off and back on – ideal for transport, storage or airline travel. It’s mounted on the front and is easy to reach.

  With the B6 memory module, you’re always in the right tilt angle and you’re safe and comfortable whether travelling up or downhill.

  The gyroscope module gives excellent driving stability and support for straight-line driving, eliminating tiresome driving corrections and enabling precise manoeuvring on various surfaces including slopes. Together with the TEN° control the gyroscope module comes as standard equipment with front-wheel drives.

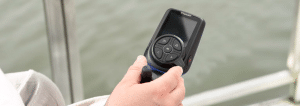

  The TEN° control gives you a modern 3.5 in colour display with an innovative rotary dial for fast speed adjustment and a soft hand pad to prevent fatigue. With an infrared and Bluetooth interface you can connect to external communication devices quickly and reliably. You can also choose the colour of its solid aluminium housing.

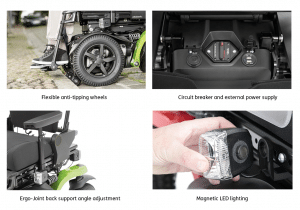

  Anti-tipping wheels come as standard on all drive types. To maintain the climbing ability of the front-wheel drive Juvo, the flexible anti-tipping wheels fold back automatically as they touch the obstacle.

  The 4-pole carbon brush technology motors come with an extended warranty.



  Why we recommend

  Ottobock’s Juvo range is built for the most demanding indoor and outdoor use for total reliability all-day, every day – they’re designed for the rough and tumble! A completely modular design also gives you a huge range of customisation options, both at time of order and as needs change.

• Dimensions & Technical Info

  Width	Chassis size 1: 600 mm / 23.6 inches – Chassis size 2: 640 mm / 25.2 inches
  Seat height	400 – 550 mm (depending on seating) / 15.7 – 21.6 inches
  Seat depth	340 – 500 mm / 13.3 – 19.6 inches
  Seat width	340 – 560 mm / 13.3 – 22 inches
  Maximum speed	6 / 7.2 / 10 / 14 km/h
  Batteries	53Ah (C5) for Juvo B5, 63Ah (C5) for Juvo B6
  Maximum range	35 km
  Maximum load	Chassis size 1: 140 kg / Chassis size 2: 160 kg
  Warranty	2 years
  Crash Tested	Yes



• Documentation

  Juvo Brochure

  Juvo B5 Order Form

  Juvo B6 Order Form

  Juvo User Manual
