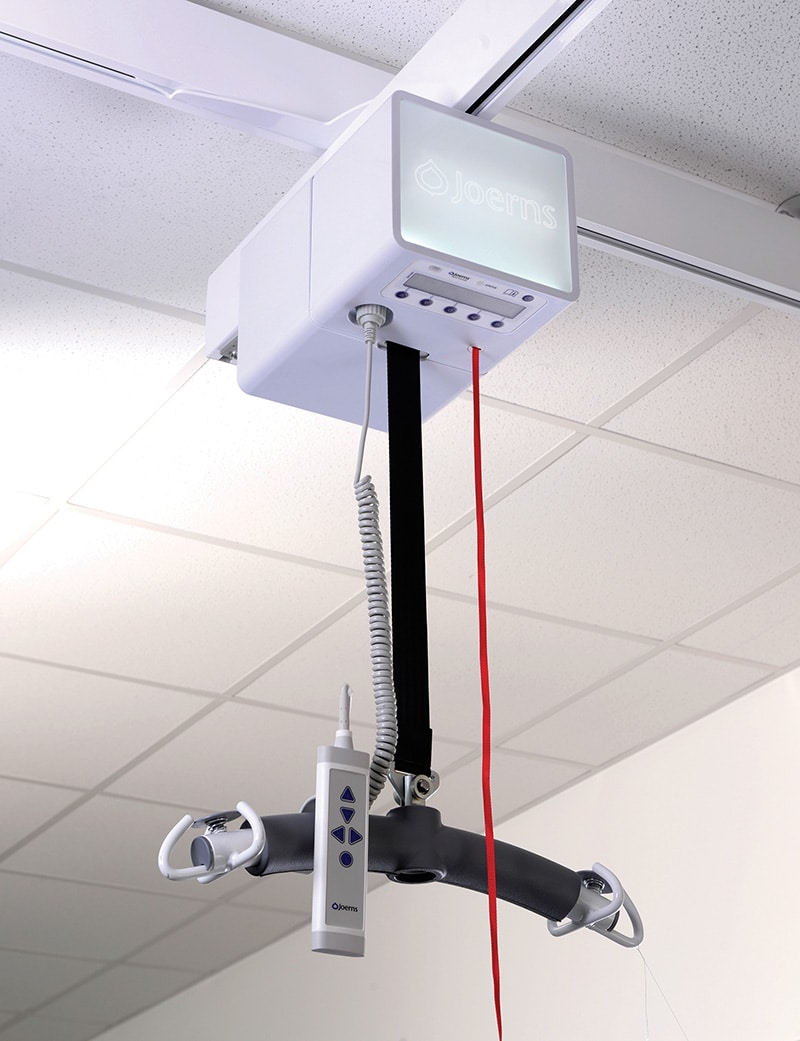

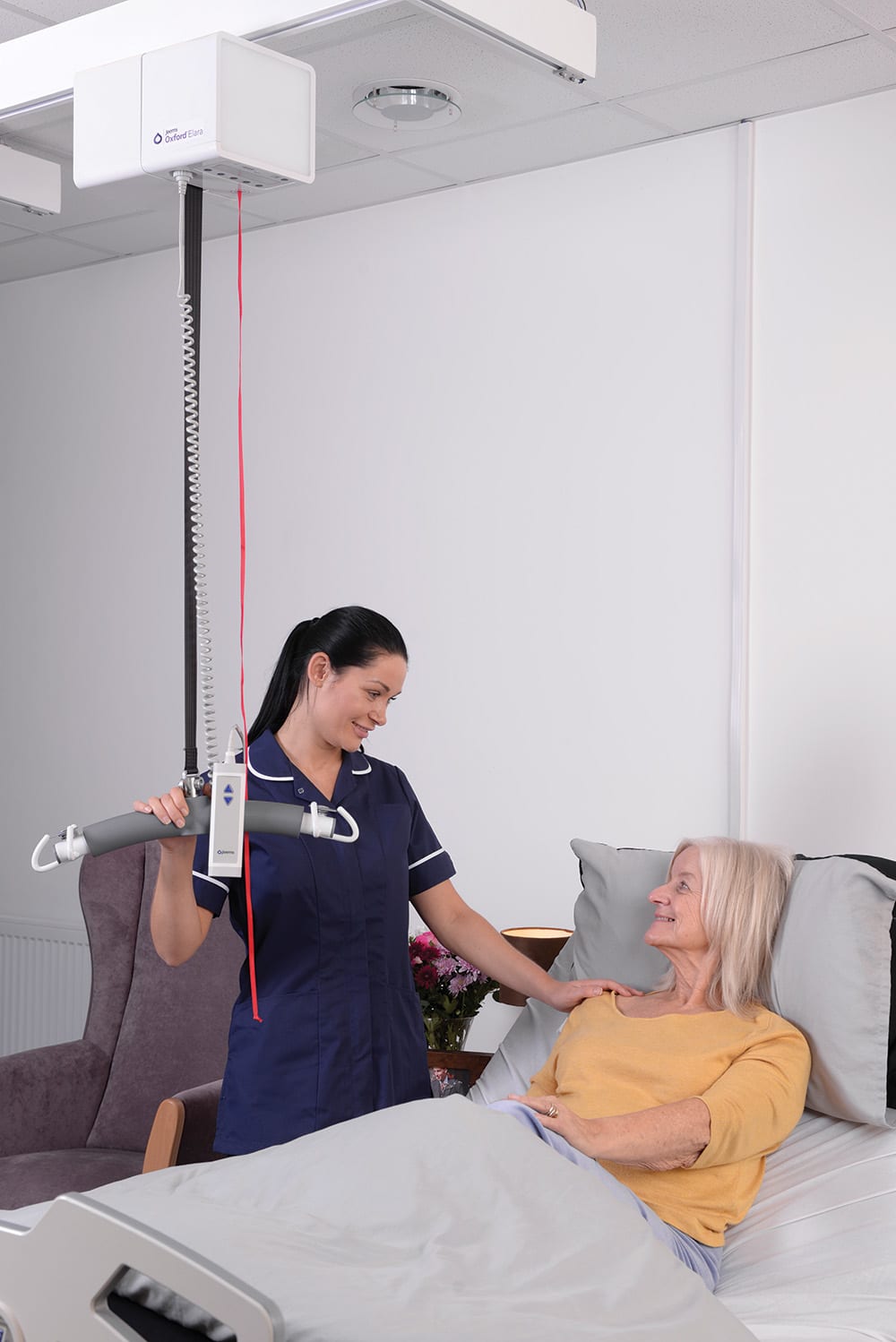

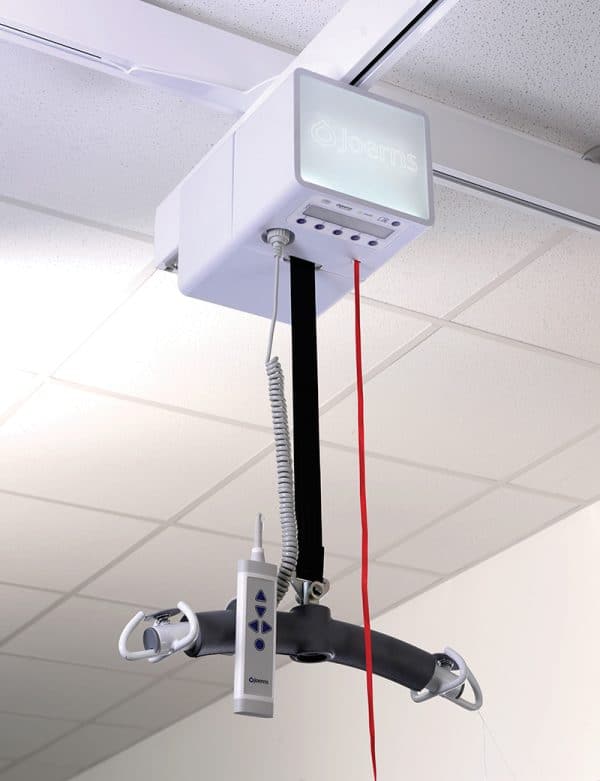

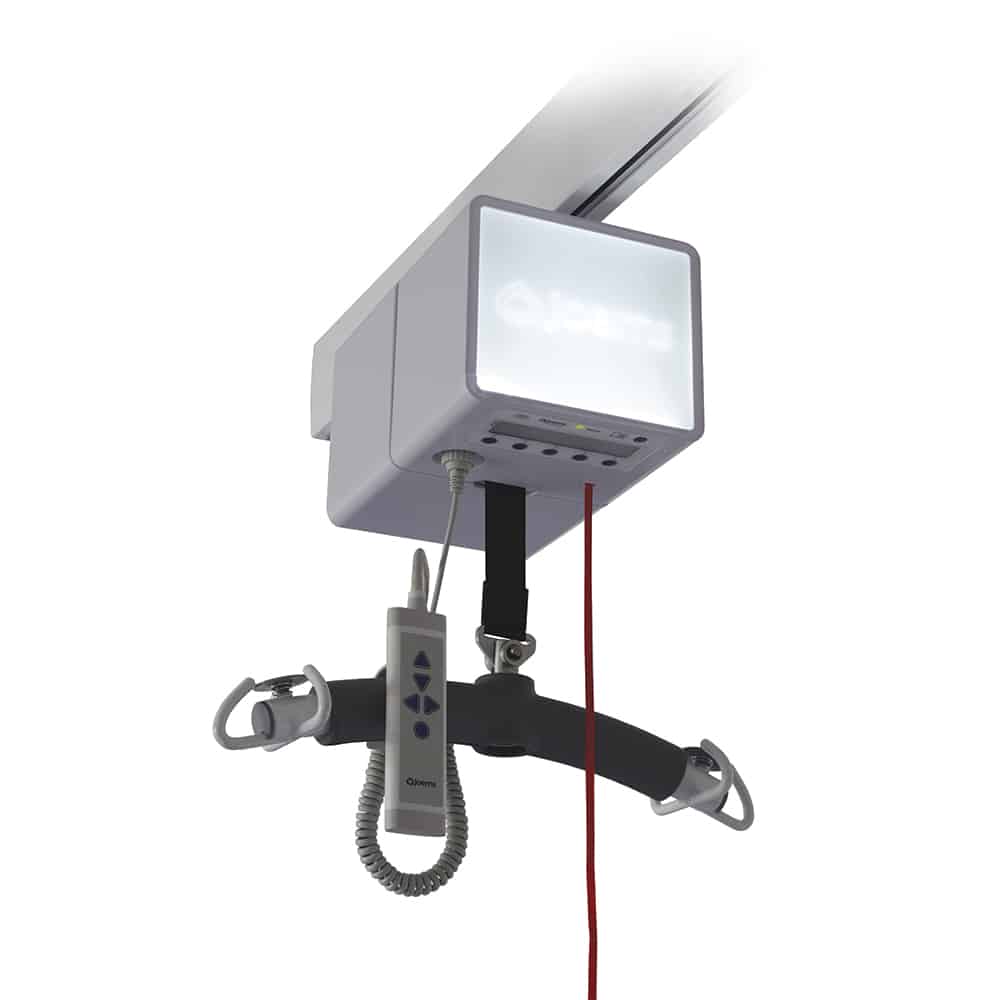

Oxford Elara Overhead Ceiling Hoist

Product Information

• Description

  The Oxford Elara overhead ceiling hoist combines contemporary design with innovative functionality to offer a simple but effective method for a variety of transfer requirements.

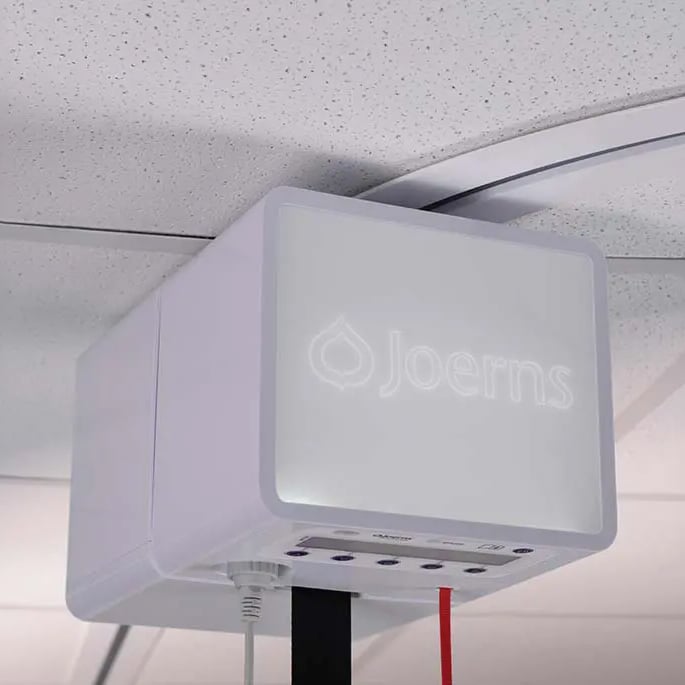

  • Oxford Halo Night Illumination: The Elara illuminates during use in low light conditions which creates an ambient, warm glow in the immediate vicinity of the lift. Elara’s illumination helps patients sustain their natural circadian rhythm while caregivers perform vital tasks in a safely, warmly lit environment.
  • Unique Elara Chauffeur®: The unique 4-wheel drive power traverse option offers excellent in-rail traction and reduces the effort required by the caregiver when transferring and positioning patients.
  • The Elara has a host of safety features including an overload safety meter, an emergency stop and a slow emergency lower function coupled with both audible and visual alerts.
  • Fully supportive of LOLER (1998), the Smart Monitor accurately records usage and diagnostic data for your lift as well as potential misuse. The intelligent system reminds you to schedule key service and maintenance, helping to safeguard the lift’s optimum condition, reducing downtime and promoting product longevity and uninterrupted care.
  • The Elara is purposely designed for ease of servicing, requiring no tools for a number of common tasks. This reduces downtime and contributes to a more efficient care environment for all.

• Options

  • Heavy duty model (248kg SWL)
  • Elara Chaffeur® powered traverse
  • Weigh scale
  • Lift tape extension
  • Continuous charge

• Dimensions & Technical Info

  Motor Length	314mm
  Motor Width	210mm
  Motor Height	179mm
  Lifting Range	2200mm (without extension)
  Safe Working Load	227kg (35st) or 284kg (44st)
  Lifts Per Charge	Approx. 40
  Warranty	2 years
