Raizer 2 Lifting Chair

Product Information

• Description

  Please note: This chair does not come with a Headrest – you will need to purchase that separately here

  How does it work?

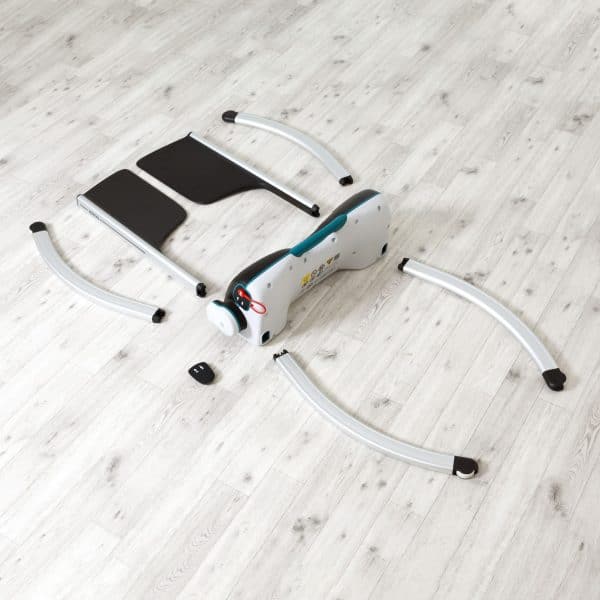

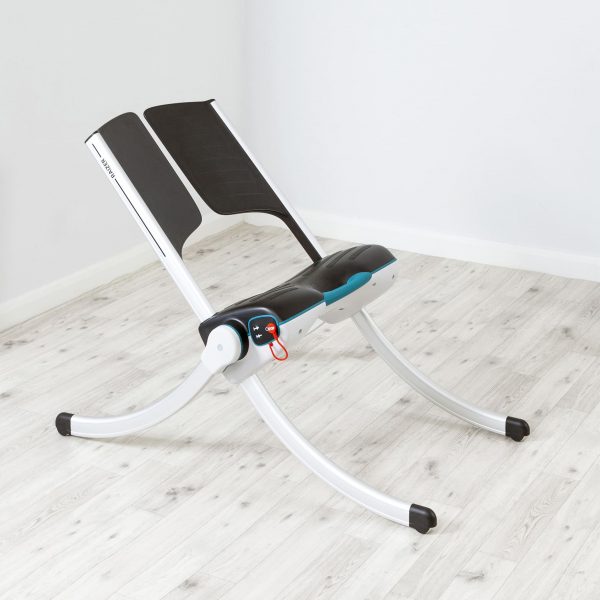

  The Raizer 2 is made up of seven large parts: four legs, two backrest pieces, and the seat, which holds the motor mechanism.

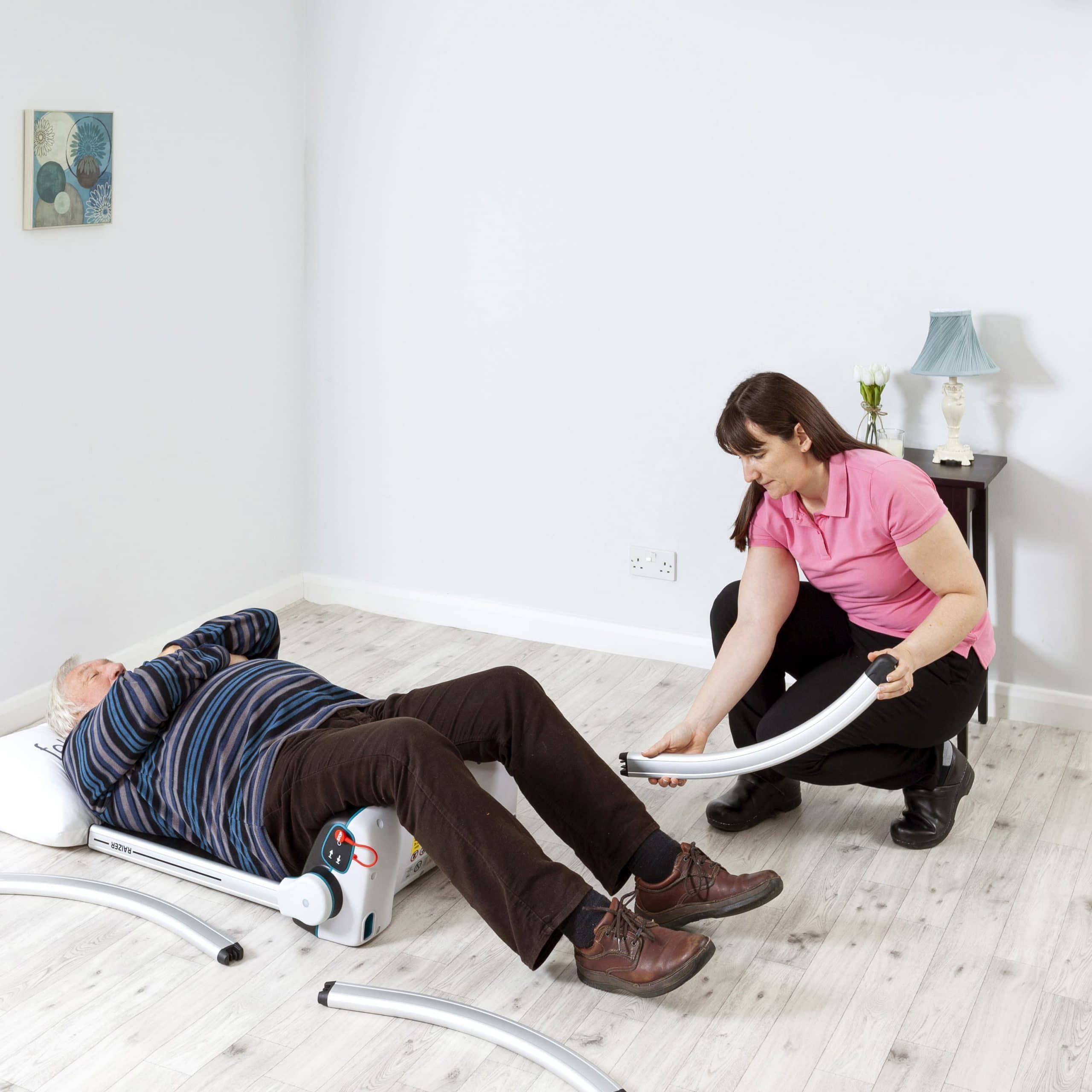

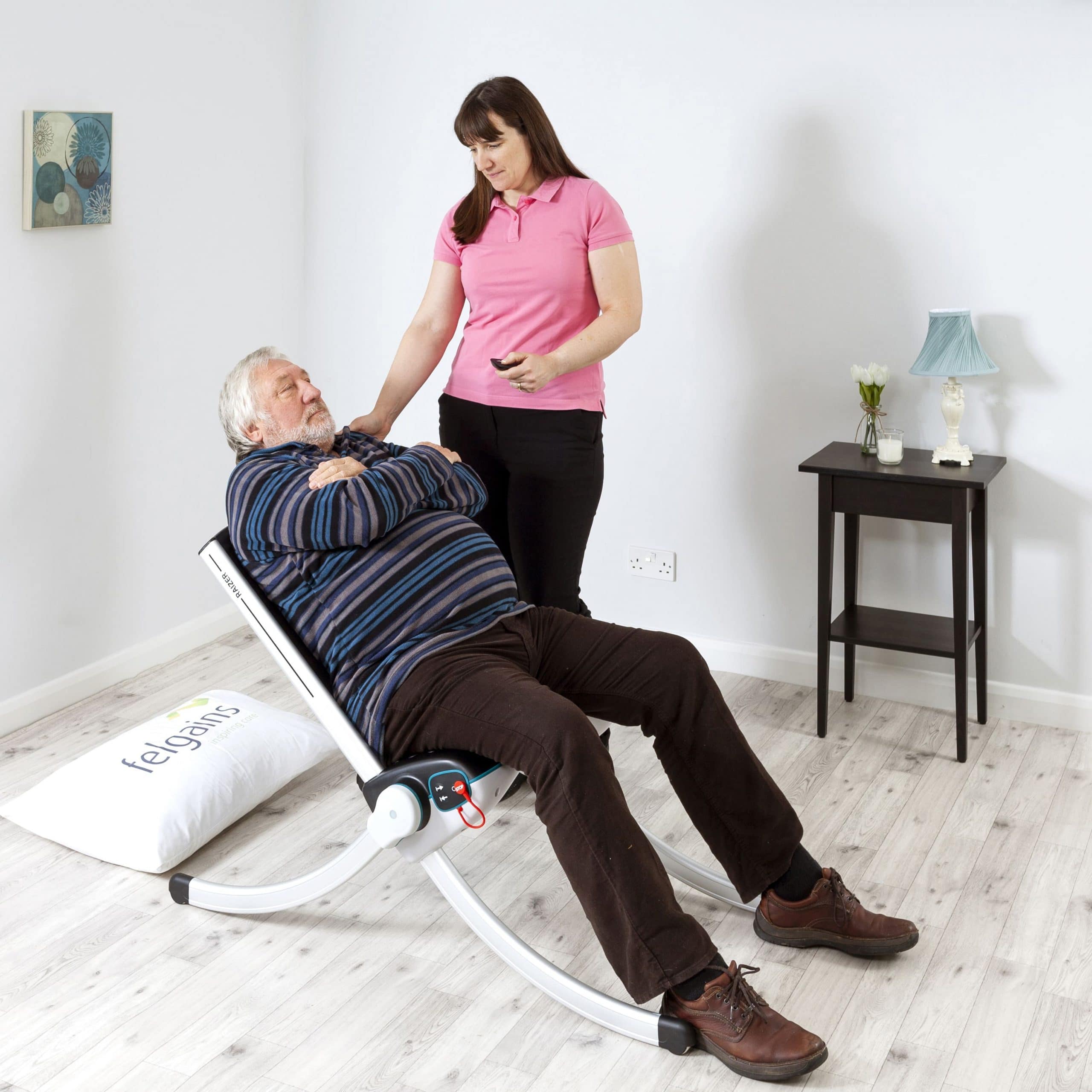

  When responding to lift elderly or disabled people after a fall, simply slide the seat under the fallen person’s knees, click the backrest pieces and legs in place (there will be a beep when each is correctly inserted) and use the remote control to gently raise the chair. The person will be raised with the chair until both themselves and the Raizer are in an upright seated position. Both the movement and seated position are stable, controlled and dignified – perfect for shared spaces, such as care homes or public places.

  Improvements over the Raizer I

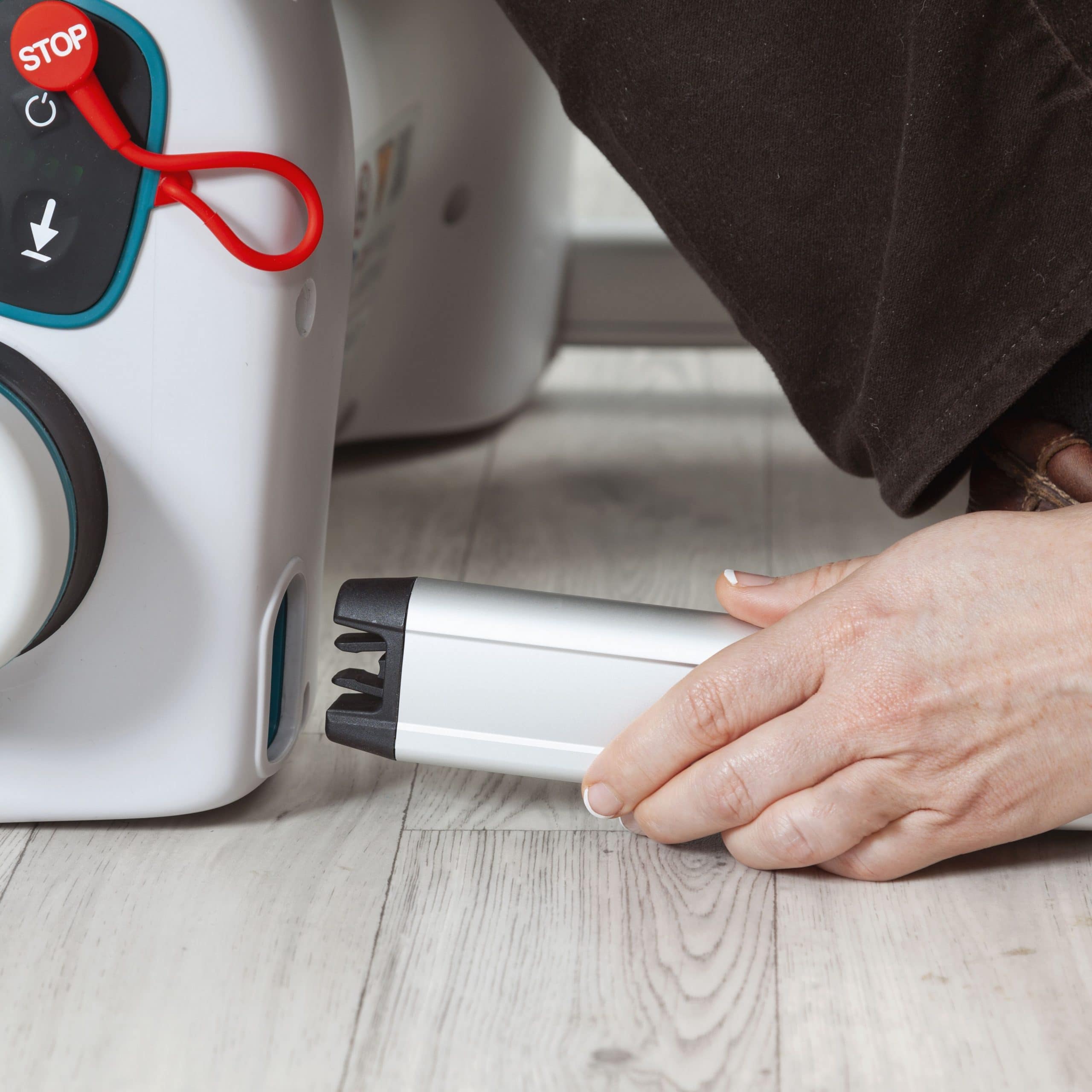

  The Raizer 2 is even easier to assemble. All leg sections are identical and nothing is ‘handed’ so it is virtually impossible to assemble incorrectly. There is an audible beep with a unique tone when each section is inserted correctly into the seat unit, so you can be sure it is correctly assembled before lifting. The Raizer 2 is also IP52 rated, meaning all surfaces are safe and easy to clean and disinfect.

  Please note: We supply the Raizer Lifting Chair in the UK only. For enquiries outside the UK, please contact the manufacturer directly.

• How to lift a fallen person with the Raizer 2 Lifting Chair | Short Training Video

• Raizer 2 Features

  • Quick, safe and stable operation minimises distress and discomfort for the person who has fallen.
  • The users’ feet maintain contact with the floor throughout the lifting process, which helps them feels more stable.

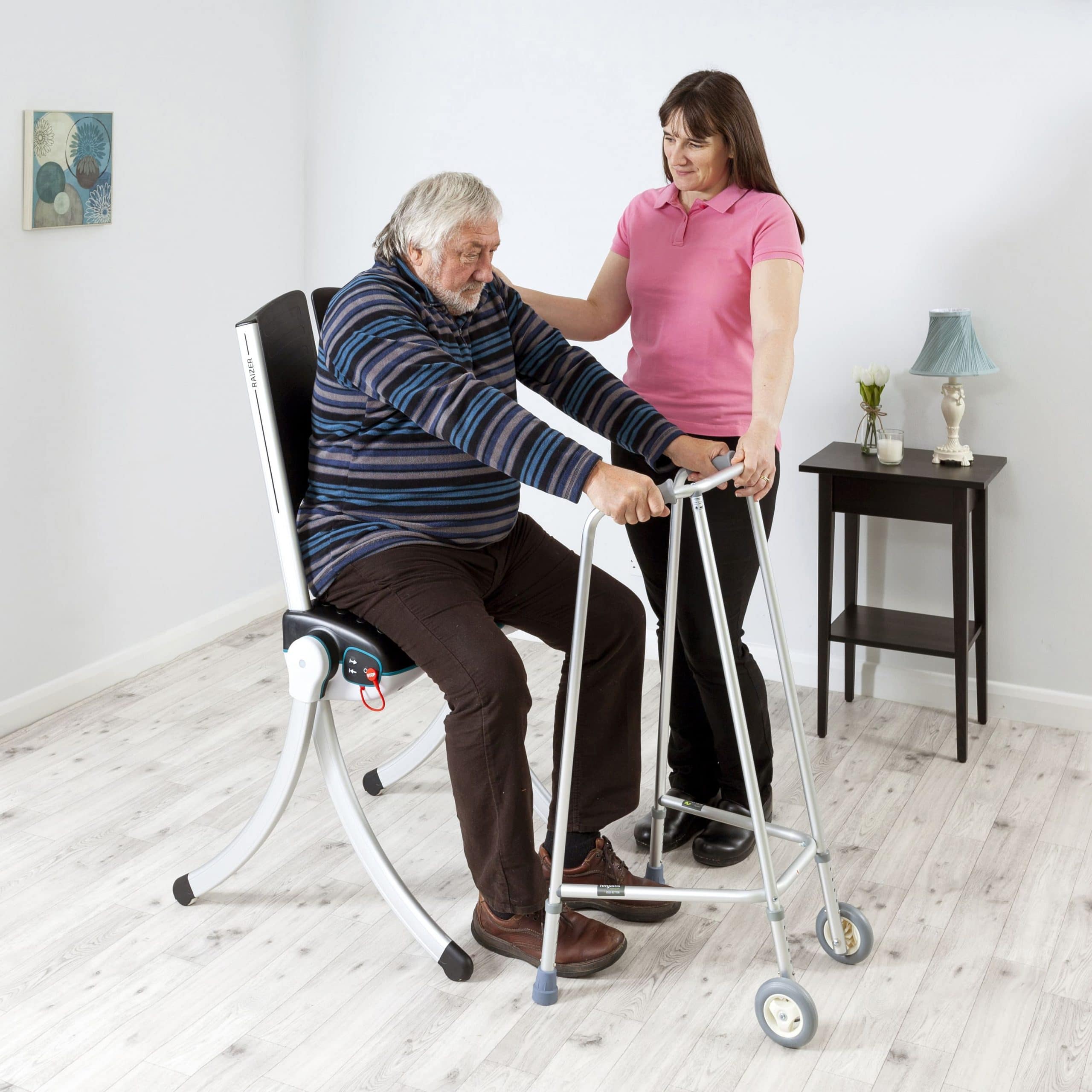

  • Once assembled, the mechanism lifts in an upright chair position for a very natural and dignified transfer.
  • Ease of assembly and speed of operation allows a fast emergency response – typical operation including assembly is about 3 minutes.
  • A supportive back and seated position enables one-person operation, saving both time and money.
  • No physical effort is required to operate the Raizer 2, so there is significantly less risk of musculoskeletal injury to carers.
  • The exceptionally long battery life provides falls response teams and ambulance services with a reliable solution that will last several shifts.
  • The Raizer 2 can be charged inside any vehicle, and is lightweight and easy to transport.

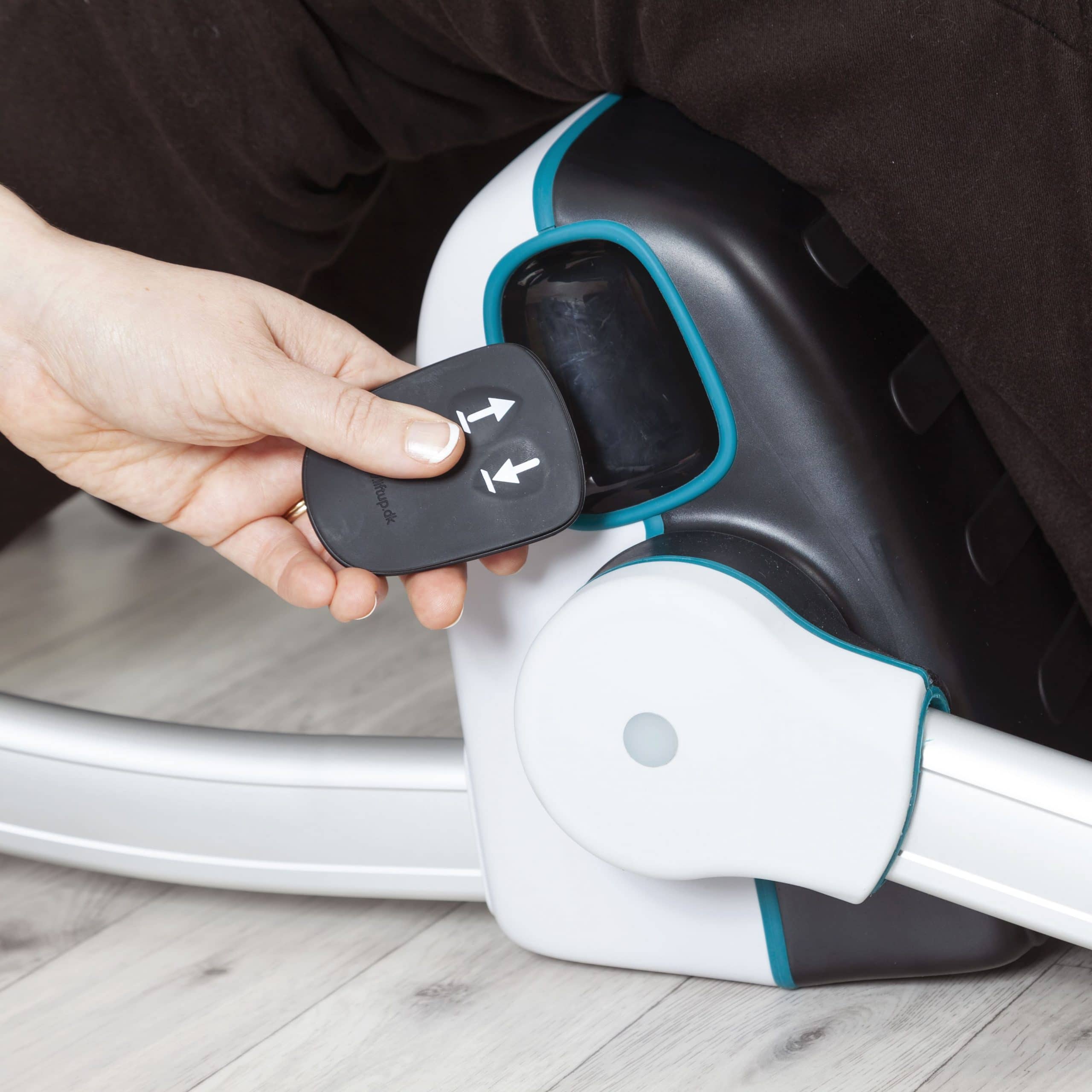

  • A remote control and seatbelt are included as standard. The seatbelt can be moved upwards to function as a thoracic support belt instead if required.
  • The Raizer 2 seat unit is now lighter and more ergonomic to carry.

• Raizer I & II Comparison

  	Raizer I	Raizer 2
  Ease of Assembly	Colour coded lifting arms and backrests for easy assembly	All lifting arms and backrests are identical, making it impossible to assemble incorrectly.
  Safety Features	Microswitches – to prevent use when assembly is incomplete – on lifting arms only.	Each component gives an audible beep upon correct insertion, with a different tone upon completion. Sensors on every component entry point mean that a lift cannot be commenced unless the chair is correctly fully assembled. A warning beep will sound if this is attempted.
  Safe Working Load (SWL)	150kg (24 stone)	150kg (24 stone)
  Weight	Seat Unit: 9kg, Backpack: 4kg Total: 13kg	Seat Unit: 8.5kg, Backpack: 4.5kg Total: 13kg Seat unit is 0.5kg lighter, so it is easier to carry.
  Warranty	2 years	2 years
  Cleaning	Clean with Disinfectant Wipes	Clean with Disinfectant Wipes. IP52 rating and designed for easier decontamination between uses.

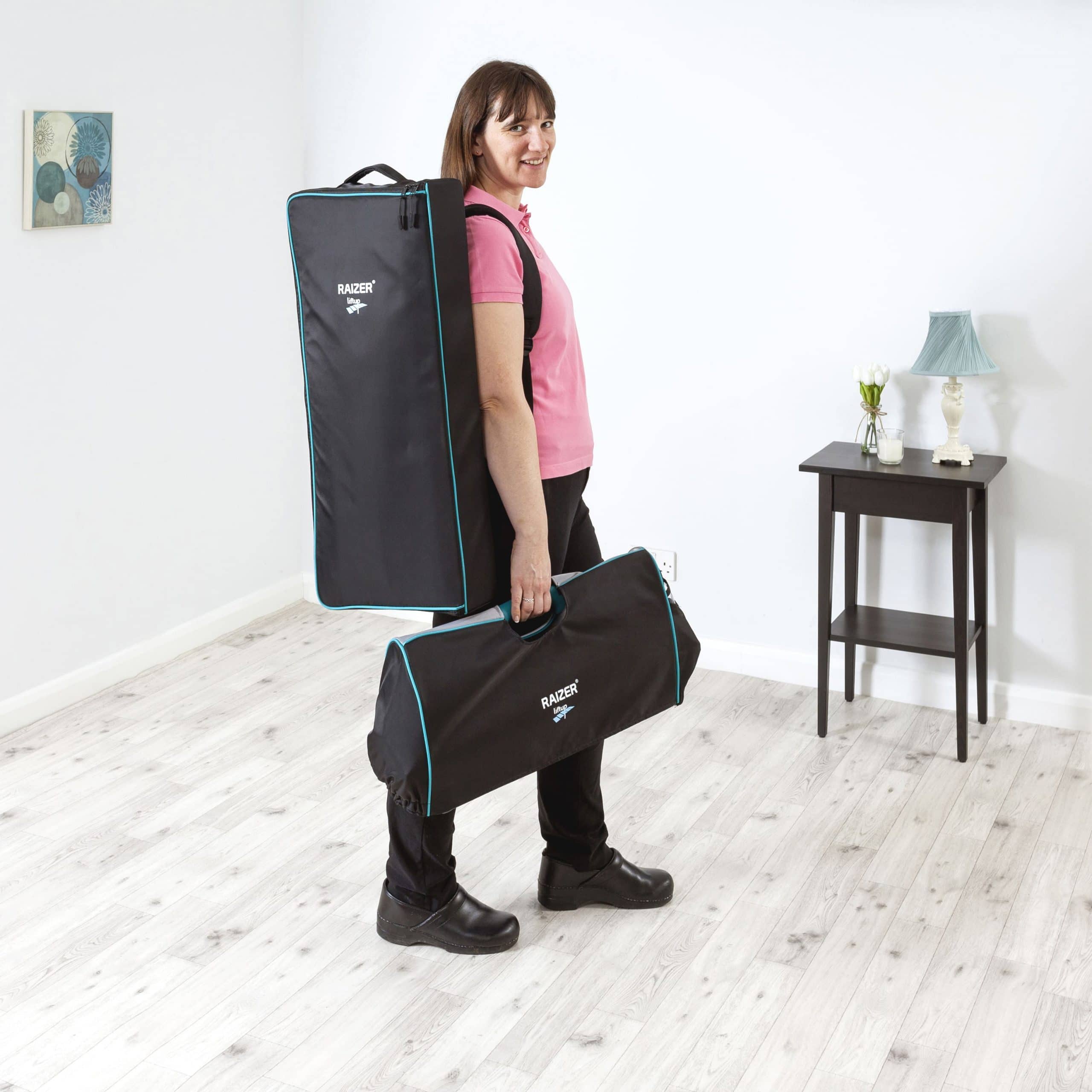

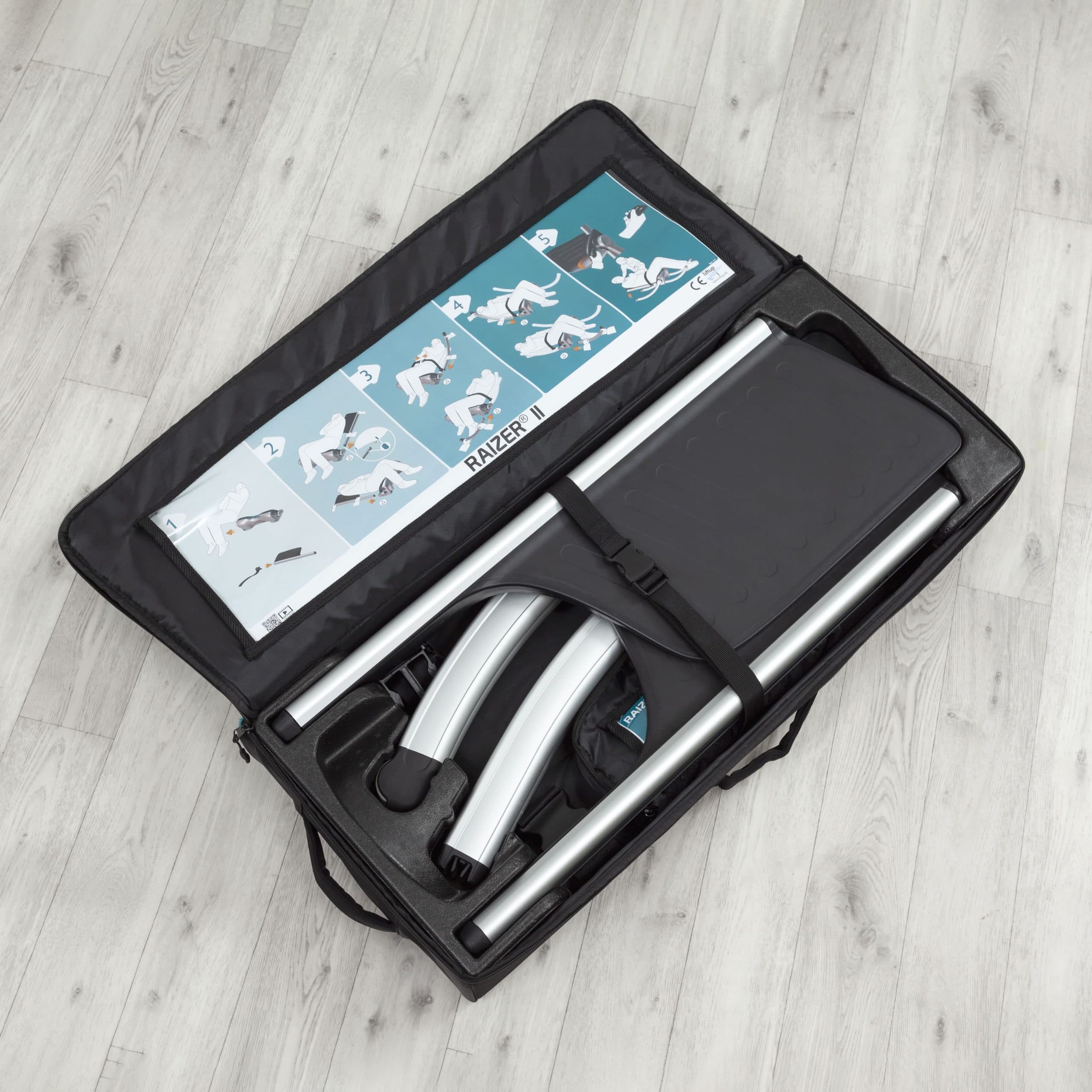

  Handling & Transportation	Carry bag for lifting arms and backrests	Seat Unit scalloped to fit around the leg when carrying. Backpack with moulded component storage and large visual assembly guide to make assembly simpler.

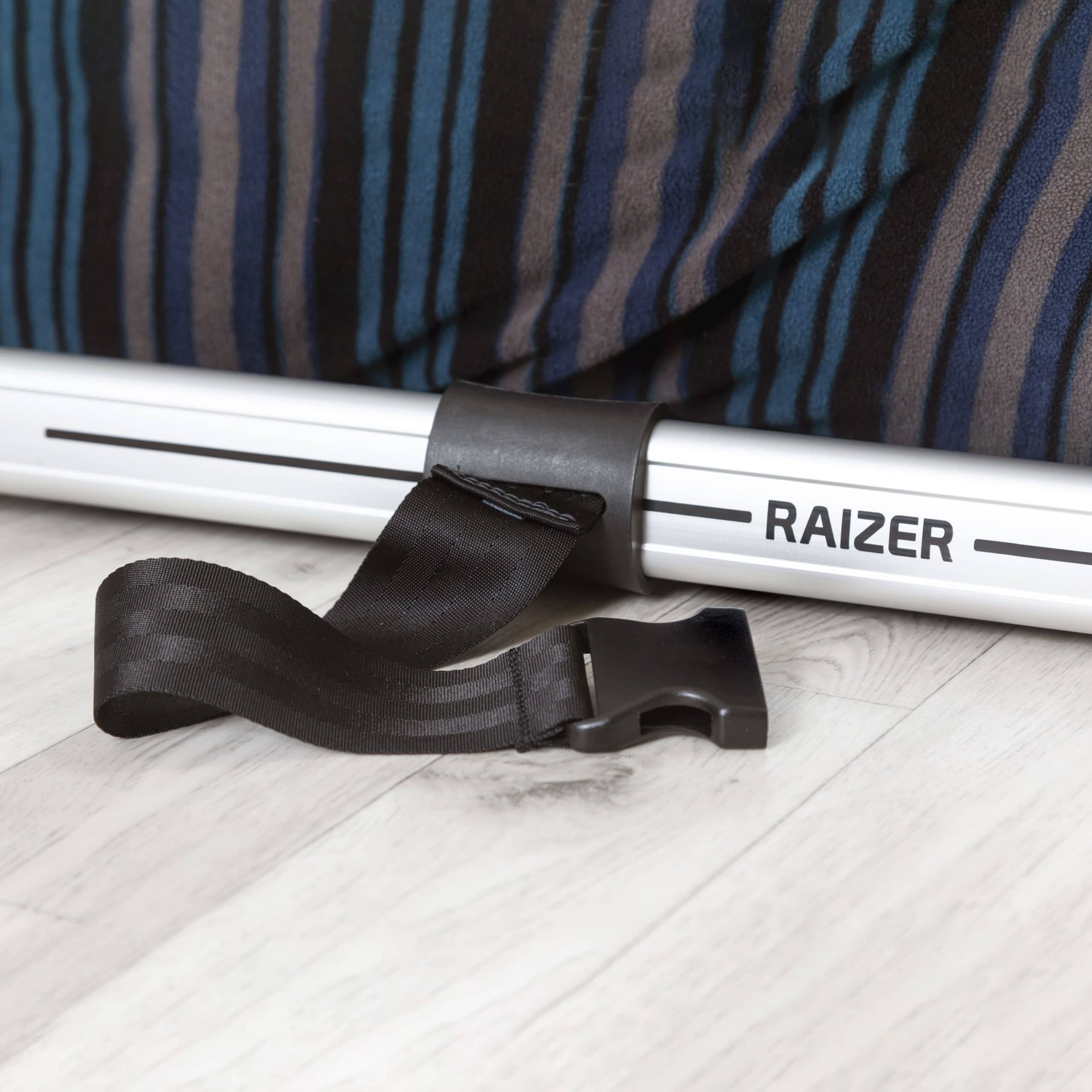

  Seatbelt	Fixed position seatbelt attached to the seat unit	Removable seatbelt that attaches to the backrests. Can be slid up and down to provide support either around the waist or the thorax.

• Who is the Raizer 2 For?

  To lift elderly people off the floor has until now been physically challenging, but the easy assembly and lack of required physical effort has made the Raizer 2 a widely adopted tool. It’s currently used by:

  • Ambulance services
  • Care homes
  • UCRT teams
  • Community-based response services
  • Hospitals
  • Individual carers & families

  Lightweight and compact, it’s easy to transport, and the in-car charger means it’s always ready to go.

• Technical Information

  • SWL: 150kg/24 stone
  • Seat dimensions: W6860mm x D257mm x H190mm
  • No. of lifts on full battery: 80
  • Total Weight: 13kg (seat motor unit: 8.5kg, Legs 4.5kg)
  • IP52 ingress protection
  • Warranty: 2 years (please note, a service is required after 12 months of purchasing your Raizer 2 in order to protect your warranty)

• Resource Downloads

  Raizer 2 User Manual

  Raizer 2 Quick Guide

• FAQs

  • Can the Raizer 2 be used outside?
    Yes, the Raizer 2 can be used inside and outside. It’s been tested on grass, gravel and paving slabs as well as all types of indoor floor surfaces like lino, carpet and tiles.
  • Is it really possible for one person to lift someone who has fallen?
    Yes, there is absolutely no manual lifting involved – all that is required is for an assistant to operate the controls to lift the person who has fallen.
  • How long does the battery last?
    On a fully charged battery, the Raizer 2 is capable of up to 80 lifts. A single lift is possible on a 10 minute charge.
  • Will the Raizer 2 work in spaces where there is no room for a hoist?
    Yes, the Raizer 2 requires little more than the footprint of a fallen person for its operation and there’s no need for the turning circle that would be necessary when using a hoist.
  • Is it easy to work out what goes where?
    All the leg sections are identical and no sections are ‘handed’ – so it is virtually impossible to assemble incorrectly. There is an audible beep when each section is inserted correctly into the seat unit.
  • How high does the Raizer 2 lift a person?
    The Raizer 2 can lift someone either to a seated position or to a perching position for very easy transfers once the lift is completed. The lift can also be stopped at any point and reversed if necessary.

• Raizer 2 Recommendations

  “I purchased a Raizer Emergency Lifting Chair in the first quarter of 2016 on behalf of Lincolnshire Partnership Foundation NHS Trust.

  We have used it as required on our Dementia and Functional wards within an older adults’ mental health setting. Anecdotally staff are so pleased with this product. It allows an amazingly fast and dignified response to a fallen patient. Once the usual protocols are followed and the patient is cleared to be stood or sat up, it is so quick and easy to use.

  Its simple colour-coded systems allows for an easy quick assembly, it allows for a much more dignified operation as compared to hoisting, without the complication of choosing and fitting the correct sling and it can be used in small spaces where the hoist is difficult to access.

  With its remote control option, the number of staff needed can be reduced to one with an individual risk assessment, though we recommend two for our staff as there is a need to support the head and a two person assist makes for a more patient-centred operation.

  An amazing product empowering staff to act with confidence, which transfers to patient confidence and reducing anxiety. Having the bonus of stopping at any stage to allow patients to harmonize themselves to their surroundings or stay sitting whilst extra observations can be ascertained is advantageous for all.

  Once stabilised the patient can be raised into a perching position for easy exit and mobilised to a suitable alternative seating or bed space.

  Absolutely brilliant, as it can be used in physiotherapy to lower a patient to the floor on a mat for rehabilitation. As an ex-engineer I just wish I had designed it!!! Thank you for supplying such an innovative product.”

  Adrian Marston, Trust Lead for Moving and Handling, DSE and Back Care,
  Senior Clinical Physiotherapist, Lincolnshire Partnership Foundation Trust.

• Raizer Accessories

  You can view and purchase this range of accessories here

  Raizer Headrest	Raizer Trolley	Raizer Disposable Hygiene Covers
